I installed a PCI card and it does not fit and/or does not work
Cause - Possible incorrect installation and/or bad PCI card connection, possible CMOS/Driver corruption.

A PCI card must be low-profile and 5.25" or less in order to be installed in the ZPC. If you installed a PCI card and it does not fit properly, be sure you have removed the Optical Drive from the keytop. If the CD is removed and the keytop still will not close, you must purchase the required PCI Riser Board. Contact Cybernet Sales at 888-834-4577 or visit the accessroies section of www.cybernetman.com to order. Be sure to know which model ZPC you have prior to ordering. If you have installed the card using the PCI Riser but it is not working, ensure the drivers have been installed correctly. In Windows, if the card is present in device manager but has an error message, uninstall the driver. Contact the manufacturer of the card for more detail on the best practice for your device. If this does not resolve the problem, clear the CMOS on your machine to remove any possible CMOS corruption.* Power the PC back on and immediately and repeatedly press the delete key. This will bring you to the CMOS Setup Utility. Navigate to the Load Optimized Defaults option and press enter to select it. Now press F10 to save the changes and exit the CMOS Setup Utility. The PC will reboot and load the Operating System. If you require further assistance, please contact Cybernet Tech Support and/or the manufacturer of your PCI card.
*For instructions on clearing the CMOS for your specific model, please refer to the related articles section.
User Opinions (1 votes)
100% 0%

How would you rate this answer?
Helpful
Not helpful
No related articles were found.
Attachments

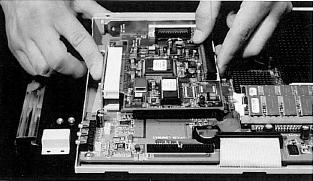

  1. PCI Riser E2.JPG

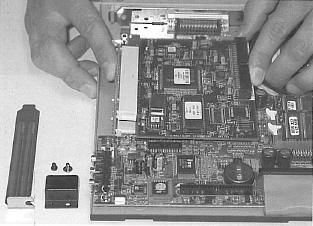

  2. PCI Riser E4.JPG

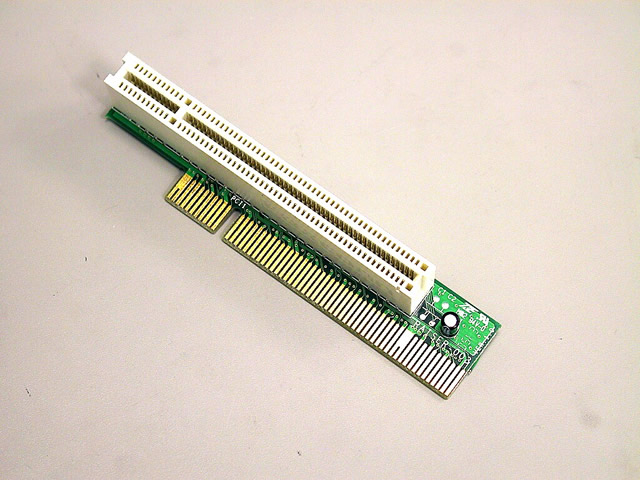

  3. ZPC9000_PCI_02.jpg
