| Model |
LCDT1002B |
LCDT1003B |

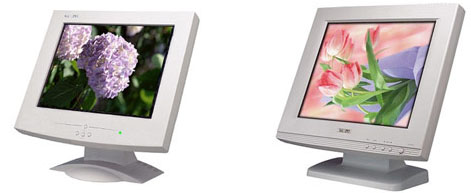

| Product Photo |
 |
 |
| Driver Element |
TFT Active Matrix |
TFT Active Matrix |
| Resolution |
1024 x 768 |
1280 x 1024 |
| Pixel Pitch |
0.297 |
0.264 |
| Display Color |
16.7 Million Colors |
16.7 Million Colors |
| Viewing Angle (H/V) |
130° / 100° |
140° / 120° |
| Brightness |
250 cd/m |
250 cd/m |
| Contrast Ratio |
400:1 |
450:1 |
| Response Time |
23 ms |
16 ms |
| Input Connectors |
D-sub 15 pin/DVI-D |
D-sub 15 pin/DVI-D |
| Power Supply |
AC 90~264V 47/63 Hz |
AC 90~264V 47/63 Hz |
| Power Consumption |
20W (Max) |
30W (Max) |
| Built-in Speakers |
2.5W |
N/A |
| Dimension (W/D/H) mm |
386 x 165 x 380 |
420 x 230 x 410 |
| Net Weight |
5.0kg |
5.9kg |
| Certifications |
FCC, CE, VCC, MIC |
FCC, CE, VCC, MIC |
| Vesa Mounting |
75/100mm |
75/100mm |
| Warranty |
One Year (Optional 2 & 3 Yrs Available) |
One Year (Optional 2 & 3 Yrs Available) |
| |
 |
|
