What is the correct pin out for Cybernet power supplies
Published: November 24, 2014
Updated: October 3, 2017

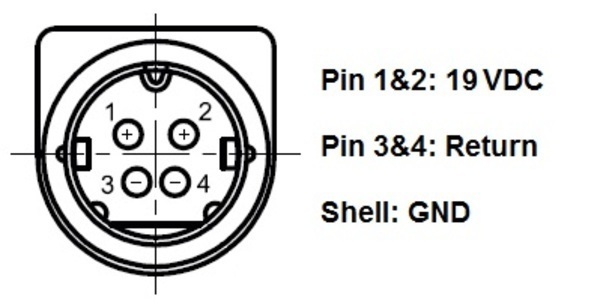

The following is the correct pin out for all Cybernet units that use a Kycon style DC power connector, excluding the CyberMed-M10, which has the pin out 90 degrees off. See below.Updated: October 3, 2017

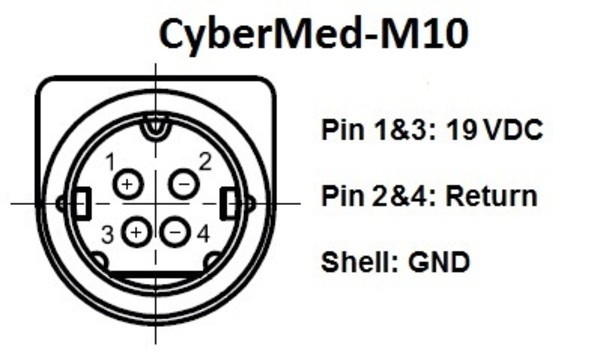

Below is the correct pin out for the CyberMed-M10. Please note the positions of the positive and negative pins.
