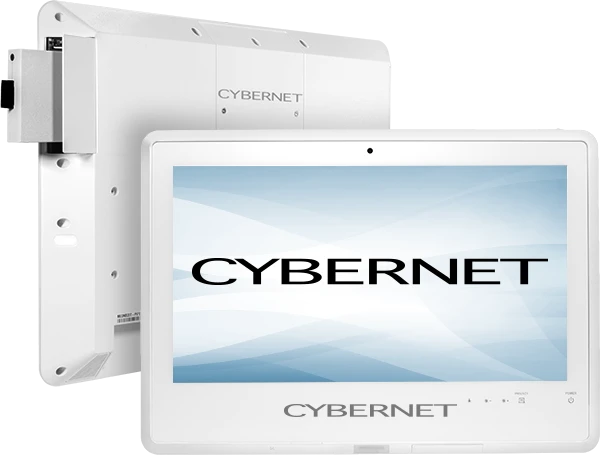

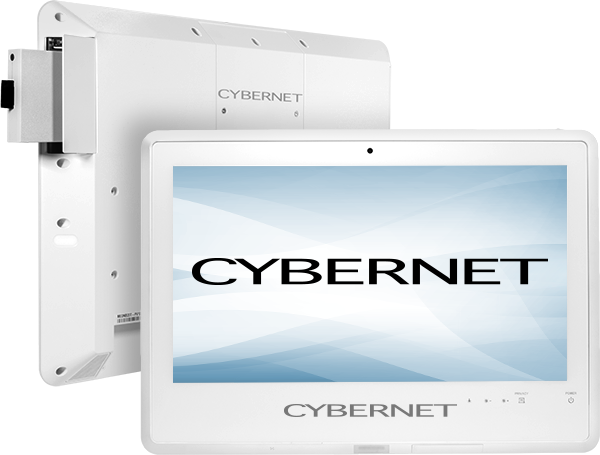

The CyberMed XB20 offers 24/7 mobility with hot-swappable batteries and a glove-friendly touchscreen. Built for the modern bedside, it eliminates power hunts and data entry bottlenecks to move at the speed of your staff.
Near-Patient Electrical Safety
5-7 Year Product Consistency
Year-over-Year
Tuned for Multiple Layers
24/7 Chemical Disinfection
The hot-swappable battery system allows for 24/7 operation without ever needing to plug into a wall, keeping your mobile workstations in constant motion.
Our advanced PCAP technology is calibrated to register precise inputs even when the clinician is wearing multiple layers of surgical or nitrile gloves.
The touchscreen remains fully functional and accurate even when exposed to moisture or liquid cleaning agents during active clinical use.
The edge-to-edge glass surface is treated with antimicrobial properties, to protect the device itself from degradation.
By utilizing heat pipes instead of fans, these medical grade monitors prevent the intake and exhaustion of contaminated air in healthcare environments.
External charging bays ensure a fresh supply of power is always ready, allowing for seamless transitions between shifts with zero downtime.
The Standard in Battery-Powered Mobility
The CyberMed XB20 is the industry benchmark for untethered clinical displays. By removing the power cord, we transform standard medical mobile carts into high-performance, long-lasting digital hubs. This mobility is powered by our proprietary hot-swap technology, which ensures that even during a battery change, the monitor remains fully powered, protecting critical patient data and maintaining a constant connection to the EMR.
ROI Through Precision Interaction
Time lost to "ghost touches" or unresponsive screens is a significant drain on hospital productivity. The CyberMed XB20 delivers a high return on investment by providing a precise response touchscreen that eliminates the need for clinicians to deglove for data entry. When integrated with all-in-one medical PCs, this responsive interface reduces charting errors and speeds up the "point-of-care" workflow, allowing for more time spent on patient interaction and less on hardware troubleshooting.
Enterprise-Ready Implementation
Deploying a fleet of mobile devices requires hardware that can adapt to specialized roles. For health systems requiring unique form factors or branding, our OEM/ODM services can tailor the touch sensitivity and battery configurations to your specific needs. This enterprise-level flexibility ensures that whether you are deploying medical tablets in the field or the CyberMed XB20 in the ICU, your staff experiences a consistent, high-fidelity interface across all platforms.
Certified Patient Safety & Hygiene
The combination of battery power and a seamless touch surface directly contributes to a safer clinical environment. By eliminating power cords, the CyberMed XB20 removes trip hazards in cramped patient rooms. Furthermore, the IP65-rated front bezel is designed to withstand the harsh chemicals used in terminal cleaning. This ensures that your medical computer infrastructure remains compliant with the strictest infection control protocols without sacrificing the high-performance touch capabilities required by modern healthcare professionals.
| Display |
1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
2 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
20.35" x 14.37" x 1.95" (L,W,D) |
| Weight |
16.75 lbs w/o batteries | 18.75 lbs w/2 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
All batteries have a one year warranty.
The sad truth is that no battery will last forever. Over the course of repeated cycles of charging and discharging, the chemical reactions that enable their function inevitably degrade. This will result in unexpected behavior, including less run time for the battery-powered medical monitor, which relies on the health of the batteries. At that point, the only option left is to replace it.
Cybernet strongly suggests replacing batteries every two years to continue the proper operation of the unit per its original specification.
We test our battery-powered medical monitors with a wide range of hospital-grade disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.
Cybernet can customize each battery-powered medical display to add a range of different touch glass options, including both embedded privacy filter and anti-glare film. We designed the CyberMed XB Series so that even with hospital-grade disinfectants, these features will last the life of the computer without damage.
Our DC out can provide up to 26 watts of continuous power for an external device. We have a large catalog of connectors we can supply including printers, scanners, cameras and many more. Please reach out to your Cybernet representative for more information.
Opting for a medical-grade monitor ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade monitor and why they're superior to regular monitor in our in-depth analysis.
Press and hold the front power button for 10 seconds to turn off all power, including the optional DC output equipment. Simply tap the button one more time for 1 second to turn on all power.
Yes, exact same form and fit. Placing our AIO and monitor side by side has a very nice aesthetic because they are matching pairs. The AIO is just a bit heavier with the additional electronics inside to make it a computer.
On the rear housing of our XB monitors we place two labels that clearly indicate the voltage levels of each output. Look for a yellow or blue label that indicate the exact color coded voltage level.
Complete your medical computing solution
"AI Clinical Performance"
"AI Clinical Workstation"
"Bedside Touch Panel"
Every Cybernet system is built to your exact requirements. We complete all configuration, imaging, and validation before shipment. Your team receives fully prepared units that can be deployed immediately, eliminating staging time, reducing IT workload, and avoiding costly delays.
Pre-configured drive images ready for your EMR system
Security and boot settings tuned to your IT policies
Barcoded and registered for your inventory system
Units arrive configured and ready for deployment
Healthcare facilities served
Annual failure rate
| Display |
1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
3 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
25.50" x 14.80" x 2.10" (L,W,D) |
| Weight |
17.75 lbs w/o batteries | 20.65 lbs w/3 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
| Display |
1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
3 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
21.75" x 14.50" x 1.92" (L,W,D) |
| Weight |
15.35 lbs w/o batteries | 18.35 lbs w/3 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
| Display |
1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
2 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
20.35" x 14.37" x 1.95" (L,W,D) |
| Weight |
16.75 lbs w/o batteries | 18.75 lbs w/2 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
| Display |
1280x1024 | 5:4 (4:3) | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
2 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
17.75" x 16.50" x 3.00" (L,W,D) |
| Weight |
15.25 lbs w/o batteries | 17.25 lbs w/2 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
