Fanless All In One Medical PC

iOne MP172
17" Fanless All In One Medical Computer

Customize with extensive feature set

  • EN60601-1 Medically Certified
    The iOne MP172 fanless all-in-one medical computer is medically certified to meet the requirements of UL60601-1 and EN60601-1, 3rd edition.
  • High Performance and Low Power Consumption
    A fanless Intel Core 2 Duo U7500 CPU and up to 4GB RAM gives power users the performance needed to run demanding medical applications.
  • IP65 front bezel and IPX1 back cover
    A front bezel that is sealed and waterproof enables the iOne MP172 to be cleaned with liquids. Not a drop of liquid can get in!
  • Antimicrobial Housing
    An antimicrobial coating that makes it easy to keep clean, which is especially important in sterile environments.
  • See Features
Free Lifetime Phone Support
U.S. Manufacturing & Technical Support
Single Touch All in One Medical PC

Touchscreen Technology

The iOne MP172 fanless all in one medical computer comes standard with 5-wire resistive touchscreen.

Medical Use

Designed for Medical Use

The iOne MP172 is IP65-certified. Its waterproof design makes it easy to keep clean which is especially important in sterile environments.

Fanless Medical Computer

Fanless Design

Fanless computers have less downtime because of the reduced number of moving parts. Because this computer is fanless, it has increased reliability / durability, it doesn't spread dust & germs and is noiseless.

Wall Mountable Medical Grade PC

Wall Mountable

The iOne MP172 can be wall-mounted using standard VESA mounting holes freeing up workspace and increasing flexibility. All you need is a nearby power outlet. Use a wireless keyboard and mouse to eliminate cables for a clean and streamlined work area.

All in One Medical PC for EMR

Benefits

Powerful PC for Medical Applications

The Intel® Core™ 2 Duo ULV 1.06GHz series CPUs and up to 4GB of DDR2 RAM give power users the performance needed to run demanding medical applications.

Fully Customizable

Need more processing power, speed, or data storage? The iOne MP172 supports Intel's U7500 Core™ Duo CPU, and up to 4GB of DDR2 memory. Cybernet can integrate the right amount of RAM to meet your needs. We can install your chosen OS and productivity software on every iOne MP172.

3 - 5 Year Product Life Cycle

With an extended product life cycle, you can add the exact same product to your line-up years later. Your IT will not have to worry about different hardware & software on various computers. You can switch out computers with minimal effort. This saves your IT resources and reduces downtime.

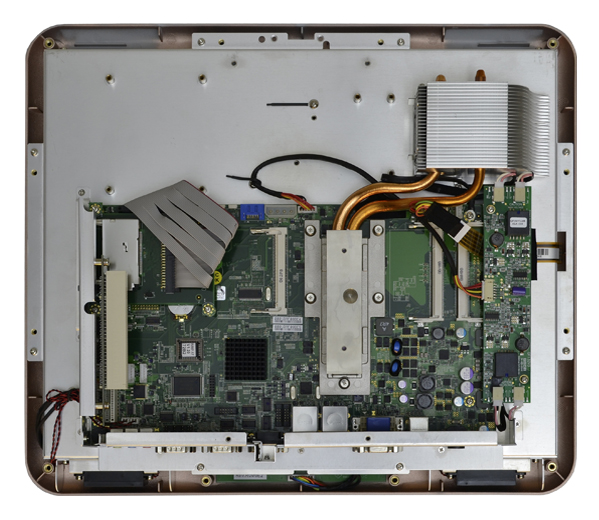

Industrial Grade Components / Extended Computer Life

The MP172 fanless all in one medical computer uses industrial grade components with high current and voltage tolerance on its motherboard. This extends the life of the computer. The MTBF (Mean Time Between Failures) for Cybernet's medical computers, including the MP172 fanless medical computer, is 50k hours or approximately 6.5 years if you use the device continuously. Additionally, the MP172 is fanless which means fewer moving parts to break down and no dust or debris circulating within the computer. This also extends the life of this medical grade computer.

Medical PC Multiple Serial Ports

Multiple Serial Ports

Multiple serial ports make this device a good choice for Anesthesia Applications

CDC Logo

The Center for Disease Control & Prevention (CDC)

The CDC strongly emphasizes upon the use of liquid disinfectants for thorough cleansing of medical equipment deployed in near-patient medical settings. Outlined explicitly in the guidelines, the deep clean-up of sensitive electronic equipment extends to medical computers.

The accredited antimicrobial housing and liquid resistant capabilities of Cybernet's medical computers meet the CDC guidelines. The unique design characteristics of Cybernet's medical computers assist in deep cleansing, doing away with the contamination due to blood, body fluids as well as routine dust and dirt.

To ensure compliance with CDC guidelines, medical computers should have the deep cleaning feature and antimicrobial properties that come standard on Cybernet's medical computers. More details on safe and effective Cybernet medical computer disinfecting agents.

Free Lifetime Phone Support

Free Lifetime Phone Support

Cybernet offers complimentary U.S. telephone support for every product we sell, for as long as you own your product. Unlike other manufacturers, we don't charge you for telephone support after one year.

Extended Warranties

Extended Warranties

With an extended warranty, you can add an extra layer of protection to our already industry-leading warranty term. We offer extended warranties for this product: up to 5 years.

Deployment & Imaging

Deployment & Imaging

Send us the final drive image on a USB key or a DVD media and we'll deploy the image on every computer you purchase from Cybernet. This reduces the deployment time. Take them out of the box, plug them in and you are ready to go. We store the image on our secure servers for future purchases.

Cybernet offers the imaging service free of charge.

Get a free, no-obligation quote on an iOne MP172.

Customize your configuration for an accurate quote.

Personalized Sales & Technical Support

Personalized Sales & Technical Support

At Cybernet, we provide premium U.S.-based sales and technical support. We're always here to help you with customization and personalized support to ensure that you find the right medical computer solution that fits your budget and timeline.

All Cybernet products are backed by industry award-winning U.S. Tech Support and local RMA service in Irvine, California.

Cybernet operates globally with operations in the U.S., U.K., Taiwan, China.

iOne MP172 Specifications

Display
- 17-inch Display
- Resolution: 1280x1024
- 400 nits
CPU Support

Intel® Core 2 Duo U7500 1.06GHz, 10W TDP (Thermal Design Power)

Chipset

Intel® GME965 chipset + ICH8M, 800MHz FSB & socket BGA479

Memory

2 Dual Channel DDR2 SODIMM socket supports up to 4GB

HDD Support

SATA port with 150 MB/s transfer rate

Networking

2x1GbE ports, Realtek RTL8111B Gigabit Ethernet

Audio
- Realtek ALC286 Audio Codec
- 2 + 2 watts power amplifier
I/O Ports
iOne MP172 Ports - 6x USB 2.0 Ports (4 External I/O, 2 ports with on-board pin headers)
- 1x VGA D8-15
- 1x DVI Output
- Triple Audio Jack
- 3x Serial Ports
- 2x Keyboard/Mouse Connectors
- 2x LAN
- 1x DC-In Power Connector
Power Supply
- 100 Watt Medical Grade AC Adapter.
- Input: 100 ~ 240V AC.
- Output: 12V DC, 7.0A.
- System can support DC12V~28V power input.
Wall Mount

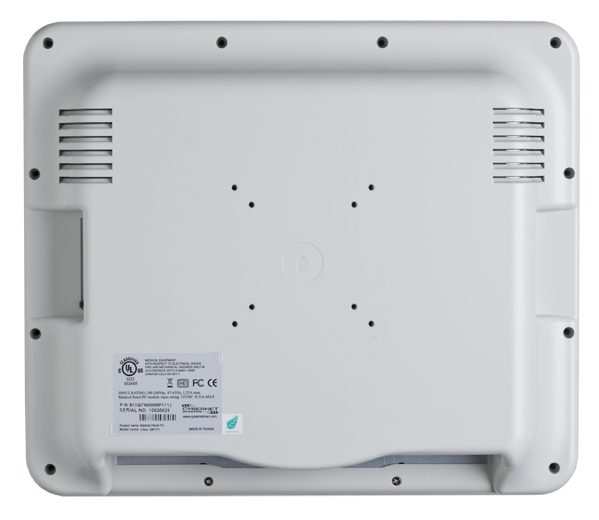

Supports both 75mm & 100mm VESA mounting holes

Expansion Slots
- 1x PCI 2.2 Bus Slot
- 1x Mini-PCI Socket
- 1x Mini-PCIe Socket
Dimensions

16.53" x 14.17" x 3.15" (L, W, D) (Approximate without stand)

Weight

15.4lbs

Security Lock

Security lock slot located on the back of the system case.

Swivel Base

Optional base stand for desktop enables left/right rotation up to 60°. Tilt from -5 to 60°.

Certifications

EN60601-1, FCC Class B, CE, UL60950, RoHs, WEEE, Energy Star 5.0, EUP 1.0

At Cybernet, customer service is the most important thing we deliver

Our goal is to offer the best post-sale and warranty support in the industry. When it comes to warranty, we keep the process very simple and have flexible options to meet your particular needs and budget.

Here is what we offer:

  • A standard Three-year warranty - parts and labor
  • An extended warranty – flexible terms and pricing
  • An enhanced warranty – loaner units arriving next business day

This is what each one covers:

Standard Three-Year Warranty

Cybernet warrants its products to be free from defects in material and workmanship, and will repair or replace the product with a similar one during the term of the warranty. We pay shipping both ways. Learn More

Extended Warranty

Cybernet offers flexible pricing for those customers who want extended warranty coverage beyond standard warranty. To learn more about the various options, please contact one of our sales professionals at 888-845-4577.

Enhanced Warranty

This is a unique warranty program that provides a loaner unit to our customers that arrives the next business day, and includes two-way shipping for the loaner and original unit. This enhanced warranty is superior to onsite service because there's no waiting for a repair person, and the loaner unit has the OS already loaded on it. To learn more about this option, contact one of our sales associates at 1-888-834-4577.

Warranty Program Details

For details on what our warranty covers and how to get warranty service, visit the main Warranty Page of our website.

medical industry icon

Computers in Healthcare

Reliable medical computers are essential in healthcare enabling medical professionals to provide critical patient care in a challenging environment. To serve that need, Cybernet has developed the next generation of all-in-one computers that carry UL60602-1 & EN60601-1 certifications, designed for specific applications in a hospital setting. The iOne-172 medical computer has a front bezel that is waterproof and dustproof, which means it can be sprayed with cleaning solutions and wiped down without damaging the computer. The special antimicrobial coating also helps maintain sterile conditions in surgical suites and operating rooms. This model has a solid state hard drive that delivers ultimate performance and reliability, and the iOne MP172 is fanless to eliminate noise and reduce air circulation. To learn about how our customers in the healthcare industry are using our medical computers, visit our success stories page for Healthcare.

dental industry icon

Dental Office Computers

Just as in healthcare, dental offices need specialized computers designed to fit their needs. Dental professionals have limited space for PCs, and must maintain a medically clean environment for their patients. The iOne MP172 is ideal for dental offices because it can be easily cleaned, is reliable, and can be placed on a small counter or even a cart. The all-in-one PC enables the dentist to view x-rays and refer to them while conducting dental procedures, making the process more efficient. To hear about how our customers in the healthcare industry are using our all in one PCs, visit our success stories page for Healthcare.

industrial industry icon

Medical Panel PCs in an Industrial Setting

IP65 panel PCs like the MP172 may also be the perfect solution for manufacturing or research facilities with clean rooms, or where environmental conditions must be controlled. The space-saving design, reliability and flexibility of the iOne MP172 is a good fit for such environments, with the performance to handle any industrial application. The fanless design reduces noise, and minimizes air circulation to maintain clean room environments or to reduce the intake of dust on a busy factory floor. With the fanless design, the overall reliability is also increased, important for maintaining mission-critical manufacturing operations. To learn more about how our customers in these industries use our all in one PCs, visit our other success stories page.
