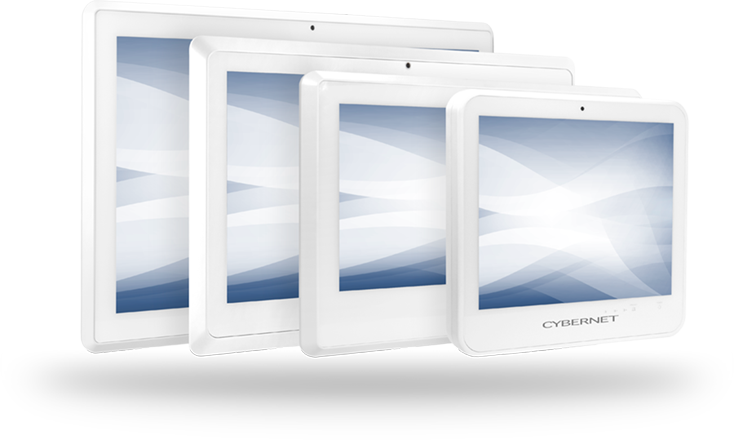

CyberMed XB Series

Battery-Powered Medical Display

CyberMed XB Series Front & Back
  • CyberMed XB Series Front & Back Thumbnail
  • CyberMed XB24 Front & Back Thumbnail
  • CyberMed XB22 Front & Back Thumbnail
  • CyberMed XB20 Front & Back Thumbnail
  • CyberMed XB19 Front & Back Thumbnail
  • Medical Cart Monitor Battery Indicator Lights Thumbnail
24"
22"
20"
19"

The perfect companion for a small form factor or thin client PC, the CyberMed XB series battery-powered monitor can power one for up to 21 hours. With hot-swappable batteries, you can change them out as needed, allowing for uninterrupted operations.

Key Features:
  • Responsive Touchscreen: Precise inputs even when you're wearing gloves.
  • Battery-Powered: Go cable-free and enjoy greater mobility and operational flexibility.
  • DC Power Output: Conveniently power other peripheral devices.
Crystal-Clear Touchscreen Display

Crystal-Clear Touchscreen Display

The CyberMed XB series pairs a sharp, high-resolution display with responsive touchscreen technology, making the user experience simple and intuitive.

  • Smart Touchscreen: It detects inputs accurately, even when the user is wearing gloves, or there are liquids on the screen.

  • Image Enhancing Technology: The crisp, HD display ensures information and images are shown correctly and clearly.

  • Optional Add-Ons: Customize your monitor with anti-glare or privacy filters for better functionality and to stay HIPAA compliant.

Hot-Swappable Battery Power

Hot-Swappable Battery Power

Featuring three hot-swappable batteries, this medical monitor allows for easy battery replacement as needed, ensuring uninterrupted operations without reliance on cables or power outlets.

  • Long Hours of Operation: Up to 21 hours of continuous operation without a recharge.

  • Power Peripheral Devices: With the DC power-out functionality, you can power printers, scanners, and other peripherals.

  • Cost Savings: On average, a battery-powered monitor and non-powered cart cost 40% less than a traditional computer and powered cart solution.

Battery-Powered Medical Computer with Antimicrobial Housing

Certified and Rated for Medical Use

All of our medical units, including the CyberMed XB series are third-party tested and certified to the highest standards possible, making them safe and ready for use in medical environments.

  • Antimicrobial* Housing: Antimicrobial technology protects the housing against harmful microbes.

  • Electric Hazard Protection: The IEC 60601-1 certification ensures that the monitor will not shock users or patients during use.

  • Electromagnetic Harmony: It can operate in close proximity to other electronic devices without disrupting or being disrupted by them.

  • Liquidproof & Dustproof: The IP65 rated front bezel protects the internal components from damage by dust or liquid spilling on the screen.

Versatility & Flexibility

EHR Management

EHR Management

A battery-powered monitor and unpowered cart is the perfect lightweight solution for accessing and reviewing EHRs as healthcare providers perform charting tasks.

Point of Care and Clinical Documentation

Point of Care and Clinical Documentation

Battery-powered medical monitors are an excellent choice for documentation, taking notes on patient treatment outcomes, and recording their assessments.

Imaging and Diagnostic Applications

Imaging and Diagnostic Applications

With their HD displays, battery-powered monitors are ideal for reviewing medical imaging and making diagnoses.

Specifications

Display

24" & 22": 1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio
20": 1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio
19": 1280x1024 | 5:4 (4:3) | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio

Touch Screen

PCAP Multi-Touch with Optional Antiglare Technology

Battery

24" & 22": 3 Hot Swap Batteries
20" & 19": 2 Hot Swap Batteries

DC Power Out

Optional: Power Module with 26 Watts of Power Available for External Devices

Viewing Angle

Horizontal 178 Degrees , Vertical 170 Degrees (Typical)

Number of Colors

16.7M

Brightness

250 cd/m2 | 4k Models: 300 cd/m2

Response Time

25ms

Video Input

HDMI

Power Supply

120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz.
Supports Output Range: DC18V-19V. 6.3A Adapters.
12V/24V Support with Optional DC Converter

Waterproof

IP65 Sealed Front Bezel and IPX1 Back Cover

Dimensions

CyberMed XB24: 23.50" x 14.80" x 2.10" (L,W,D)
CyberMed XB22: 21.75" x 14.50" x 1.92" (L,W,D)
CyberMed XB20: 20.35" x 14.37" x 1.95" (L,W,D)
CyberMed XB19: 17.75" x 16.50" x 3.00" (L,W,D)

Weight

CyberMed XB24: 17.75 lbs w/o batteries | 20.65 lbs w/3 batteries
CyberMed XB22: 15.35 lbs w/o batteries | 18.35 lbs w/3 batteries
CyberMed XB20: 16.75 lbs w/o batteries | 18.75 lbs w/2 batteries
CyberMed XB19: 15.25 lbs w/o batteries | 17.25 lbs w/2 batteries

Wall Mount

Supports 75mm & 100mm VESA mounting holes

Environment

Operating Temperature: 0°C~35°C

Relative Humidity

10%~90% (non-condensing)

Certifications

UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE

I/O Ports

1x HDMI - In
1x USB (for touchscreen)
2x USB3.0
1x 4Pin DIN power Jack
1x Debug Service Port
2x WiFi Passthrough

Audio

2-channel 2Watt speaker facing back

Warranty

3 Years* Standard with Optional Plans up to 5 Years



Notes:
*Only for US-based customers.

Looking to download this information? Download PDF Version

Related Accessory Tech Specs

Hot Swappable Battery Download PDF Version
Three Bay Battery Multicharging Station Download PDF Version

What Makes Cybernet Different

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues free of charge for the lifetime of our products, unlike manufacturers who charge for telephone support after a year.

Warranty

Our devices include a 3-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty and accidental damage protection for extra coverage.

Customization

We offer a range of features, such as privacy filters, anti-glare touchscreens, and RFID readers, so you can create the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing before shipment ensure you get the best quality, with e a failure rate below 0.5%.

Legacy Compatibility

Our battery-powered medical monitors have ports and features that connect with older medical devices and equipment, saving you on expensive replacements.

Trusted by

The displays are large, bright, and stand up to the harsh environment including COVID-19 isolation rooms where they are subjected to frequent and repeated decontamination/sanitization routines.
- Jesse Nath, Sr Director of Information Technology Regional Medical Center of San Jose

Frequently Asked Questions

What is the warranty on your batteries and what are the maintenance intervals for the battery replacements?

All batteries have a one year warranty.

The sad truth is that no battery will last forever. Over the course of repeated cycles of charging and discharging, the chemical reactions that enable their function inevitably degrade. This will result in unexpected behavior, including less run time for the computer, which relies on the health of the batteries. At that point, the only option left is to replace it.

Cybernet strongly suggests replacing batteries every two years to continue the proper operation of the unit per its original specification.

What hospital grade disinfectants are compatible with your units?

We test our computers with a wide range of hospital-grade disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.

Are there optional embedded privacy filters for HIPAA compliance or anti-glare options for harsh lighting environments?

Cybernet can customize each computer to add a range of different touch glass options, including both embedded privacy filter and anti-glare film. We designed the CyberMed NB Series so that even with hospital-grade disinfectants, these features will last the life of the computer without damage.

How much power can your DC out provide and can you provide me the connector to my device?

Our DC out can provide up to 26 watts of continuous power for an external device. We have a large catalog of connectors we can supply including printers, scanners, cameras and many more. Please reach out to your Cybernet representative for more information.

Why should I buy a medical-grade monitor versus a standard monitor like those from ELO, Asus, etc?

Opting for a medical-grade monitor ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade monitor and why they're superior to regular monitor in our in-depth analysis.

How can I do a complete power cycle on my monitor?

Press and hold the front power button for 10 seconds to turn off all power, including the optional DC output equipment. Simply tap the button one more time for 1 second to turn on all power.

Are your CyberMed monitors the same dimensions as your all in ones?

Yes, exact same form and fit. Placing our AIO and monitor side by side has a very nice aesthetic because they are matching pairs. The AIO is just a bit heavier with the additional electronics inside to make it a computer.

How can I tell what voltage the DC output is set to?

On the rear housing of our XB monitors we place two labels that clearly indicate the voltage levels of each output. Look for a yellow or blue label that indicate the exact color coded voltage level.
