CyberMed PX Series

Medical Touchscreen Monitor

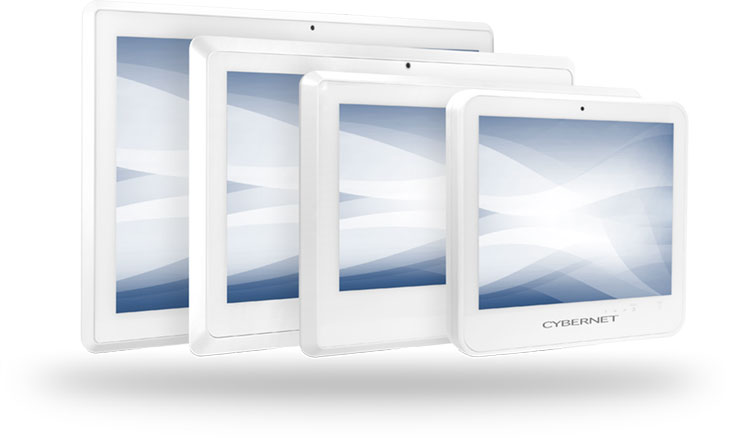

CyberMed PX Series Front & Back
  • CyberMed PX Series Front & Back Thumbnail
  • CyberMed PX24 Front Thumbnail
  • CyberMed PX22 Front Thumbnail
  • CyberMed PX20 Front Thumbnail
  • CyberMed PX19 Front Thumbnail
  • CyberMed PX Series Front Stacked Thumbnail
24"
22"
20"
19"

Expertly designed and medically certified, the CyberMed PX series of medical displays is the perfect solution for the healthcare sector. Enjoy crisp, high-definition images paired with a versatile design that can be customized to your exact needs.

Key Features:
  • Responsive Touchscreen: Capable of supporting multi-touch functions and detecting inputs even when you're wearing gloves.
  • Medically Certified: The IEC 60601-1 certification ensures it is electrically safe to use in medical environments.
  • Versatile Uses: With a universal mount and a wide range of I/O ports, it can be used almost anywhere.
High-Definition Display

High-Definition Display

With an HD resolution of up to 1920x1080p these medical displays offer superior image quality for accurate imaging and diagnostics, efficient patient consultations, and enhanced telemedicine experiences.

  • Smart Screen: The super-responsive touchscreen can filter out false inputs from liquid on the screen.

  • Image Enhancing Technology: Images and colors are always clear and crisp for easy and accurate viewing.

  • Optional Features: Customize your monitor with anti-glare or privacy filters for better functionality and to stay HIPAA compliant.

Tested and Certified for Safe Use

Tested and Certified for Safe Use

All of our medical displays, including the CyberMed PX series, are tested and certified for healthcare environments to the highest standards possible, ensuring they're safe and ready for your staff and patients.

  • Safe from Electric Hazards: With an IEC 60601-1 certification, the CyberMed PX series won't shock the user or patient even during a power surge.

  • Electromagnetic Harmony: You can use the CyberMed PX series near other electronic devices without disrupting or being disrupted by them.

  • Sealed and Waterproof: The CyberMed PX series features an IP65-rated front bezel, meaning dust and water cannot penetrate the screen.

Flexible, Reliable, and Precise

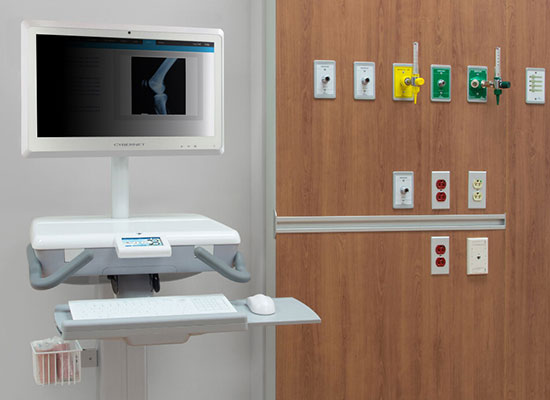

Static or Mobile Deployment

Static or Mobile Deployment

You can take it or leave it wherever you need it—attached to a wall or on a mobile cart with a universal VESA mount.

Pair With a Mini PC

Pair With a Mini PC

The HDMI port lets you pair the CyberMed PX series with a mini PC for a lightweight computer solution.

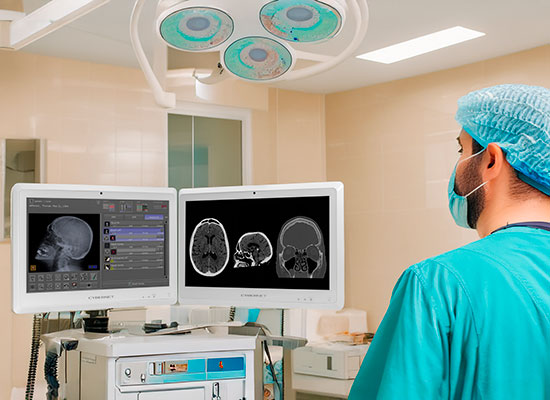

Dual Monitor

Dual Monitor

Extend your viewpoint and enable easy multitasking by pairing your medical display with a panel PC.

Specifications

Display

24" & 22": 1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio
20": 1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio
19": 1280x1024 | 5:4 (4:3) | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio

Touch Screen

PCAP Multi-Touch with Optional Antiglare Technology

DC Power Out

Optional: Power Module with 26 Watts of Power Available for External Devices

Viewing Angle

Horizontal 178 Degrees , Vertical 170 Degrees (Typical)

Number of Colors

16.7M

Brightness

250 cd/m2 | 4k Models: 300 cd/m2

Response Time

25ms

Video Input

HDMI

Power Supply

120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz
Supports Output Range: DC18V-19V. 6.3A Adapters.
12V/24V Support with Optional DC Converter

Waterproof

IP65 Sealed Front Bezel and IPX1 Back Cover

Dimensions

CyberMed PX24: 23.50" x 14.80" x 2.10" (L,W,D)
CyberMed PX22: 21.75" x 14.50" x 1.92" (L,W,D)
CyberMed PX20: 20.35" x 14.37" x 1.95" (L,W,D)
CyberMed PX19: 17.75" x 16.50" x 3.00" (L,W,D)

Weight

CyberMed PX24: 17.75 lbs
CyberMed PX22: 15.35 lbs
CyberMed PX20: 16.75 lbs
CyberMed PX19: 15.25 lbs

Wall Mount

Supports 75mm & 100mm VESA mounting holes

Environment

Operating Temperature: 0°C~35°C

Relative Humidity

10%~90% (non-condensing)

Certifications

UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE

I/O Ports

1x HDMI - In
1x USB (for touchscreen)
1x 4Pin DIN power Jack
1x Debug Service Port
2x WiFi Passthrough

Audio

2-channel 2Watt speaker facing back

Warranty

3 Years* Standard with Optional Plans up to 5 Years



Notes:
*Only for US-based customers.

Looking to download this information? Download PDF Version

Related Accessory Tech Specs

Internal UPS Download PDF Version

What Makes Cybernet Different

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues free of charge for the lifetime of our products, unlike manufacturers who charge for telephone support after a year.

Warranty

Our devices include a 3-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty and accidental damage protection for extra coverage.

Customization

We offer a range of features, such as privacy filters, anti-glare touchscreens, and RFID readers, so you can create the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing before shipment ensure you get the best quality, with e a failure rate below 0.5%.

Legacy Compatibility

Our battery-powered medical computers have ports that connect with older devices and equipment, saving you on expensive replacements.

Trusted by

The displays are large, bright, and stand up to the harsh environment including COVID-19 isolation rooms where they are subjected to frequent and repeated decontamination/sanitization routines.
- Jesse Nath, Sr Director of Information Technology Regional Medical Center of San Jose

Frequently Asked Questions

What hospital grade disinfectants are compatible with your units?

We test our computers with a wide range of hospital-grade disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.

Are there optional embedded privacy filters for HIPAA compliance or anti-glare options for harsh lighting environments?

Cybernet can customize each computer to add a range of different touch glass options, including both embedded privacy filter and anti-glare film. We designed the CyberMed NB Series so that even with hospital-grade disinfectants, these features will last the life of the computer without damage.

How much power can your DC out provide and can you provide me the connector to my device?

Our DC out can provide up to 26 watts of continuous power for an external device. We have a large catalog of connectors we can supply including printers, scanners, cameras and many more. Please reach out to your Cybernet representative for more information.

Why should I buy a medical-grade monitor versus a standard monitor like those from ELO, Asus, etc?

Opting for a medical-grade monitor ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade monitor and why they're superior to regular monitor in our in-depth analysis.

How can I do a complete power cycle on my monitor?

Press and hold the front power button for 10 seconds to turn off all power. Simply tap the button one more time for 1 second to turn on all power.

Are your CyberMed monitors the same dimensions as your all in ones?

Yes, exact same form and fit. Placing our AIO and monitor side by side has a very nice aesthetic because they are matching pairs. The AIO is just a bit heavier with the additional electronics inside to make it a computer.
