Medical Box PC CyberMed R6

Medical Box PC
  • Medical Box PC Thumbnail
  • Highly Customizable Medical Box PC Thumbnail
  • Medical Box PC Mounted on Cart Thumbnail
  • Medical Box PC with Built-in Stereo Speakers Thumbnail

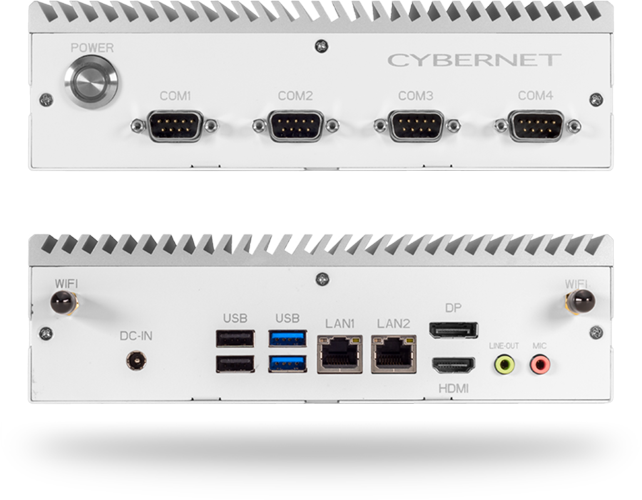

  • Medical Box PC Back View Thumbnail

Designed with flexibility and versatility in mind, the CyberMed R6 medical box PC is the ideal low-profile computing solution for healthcare. Powerful, reliable, and compact, the CyberMed R6 embedded computer can deliver performance no matter what your end-use may be.

Key Features:
  • Fanless Cooling: Enjoy silent performance and increased reliability
  • IEC 60601-1 Certified: Ensure the highest level of safety and quality for patients and clinicians
  • Multiple I/O Ports: Connect all the devices you need with modern and legacy ports
  • Internal Speakers: Reduce external components and the overall footprint
  • Custom Mount: Mount it virtually anywhere
Medical Box PC with Compact Design

Compact Design

Engineered compact to be stowed away, but designed so elegantly you'll want to display it. At just 8"x8"x2.28", the CyberMed R6 can fit almost anywhere, bringing computing power wherever you need it.

  • Space-Efficient: The compact size allows it to easily fit into tight spaces that might be unsuitable for larger conventional PCs.

  • Lightweight: At only 5.2 lbs, it doesn't need bulky mounts, giving you more flexibility to deploy.

Medical Box PC with Fanless Cooling

Fanless Cooling

Escape the noise and unreliability of traditional cooling methods with our fanless medical box PC. We use customized thermal heatsinks to ensure a quiet and dependable computing experience.

  • Silent Operation: No fans means a noise-free computing experience, letting you focus on your work.

  • Dependable Performance: By removing all of the most trouble-causing moving mechanical parts, the CyberMed R6 guarantees reliability you can trust.

  • Dust-Proof: Protect the computer's most vulnerable components from dust damage.

Medical Box PC with Four COM Ports

Medically Certified

The safety of your patients and staff is of critical importance. Our embedded computers have passed rigorous medical-grade EMC and safety testing and boast IEC 60601-1 and 60601-1-2 certification, guaranteeing:

  • Electrical Hazard Protection: You and your patients are protected from the risk of electrical shock or burns, even in the face of power surges.

  • Electronic Harmony: The CyberMed R6 will not disrupt or be disrupted by other electronic devices operating nearby.

More Capabilities to Power Up Your Efficiency

Customizable Medical Box PC


With multiple options for CPU, operating system, and I/O ports, the CyberMed R6 can be made to fit your exact needs.

Mountable Medical Box PC

Easily Mountable

Compatible with VESA, DIN Rail, and rack mount solutions, so you can place your embedded computer anywhere.

Medical Box PC with Buult-In Speakers

Built-In Speakers

Two built-in stereo speakers enable remote patient monitoring and telehealth visits without the need of extra speakers.

Certified Ready for HIT Use

Cybernet is committed to putting our embedded PCs through extensive independent testing from trusted names in HIT. This ensures our computers will meet any and all challenges you put them through.


CPU Support

8th / 9th Generation Intel Core i3, i5 & i7 Processors


Intel H310


1x DDR4/DDR4L SO-DIMM socket, populated up to 32GB

Operating System

Windows 11, Windows 10, Windows IoT, Windows 8.1, Windows 7, Linux

Video & Graphics

Intel UHD 630 Graphics


2x Gigabit GbE Intel (10/100/1000 Mbit)


802.11 a/b/g/n/ac + Bluetooth 5.1

Expansion Slots

1x M.2 (Full-Size) M Key 2260/2280 SATA and PCIe x2/x4 Support
1x M.2 (Half-Size) E Key
1x Mini PCIe (Full-Size)

HDD Support

2x 2.5" Solid State Drives up to 2TB
1x M.2 2280 PCIe x2/x4 NVME up to 2TB

Display Outputs

HDMI / 4096 x 2160 @ 60Hz
Display Port / 4096 x 2304 @ 60Hz


TPM 2.0 Support (Supports downgrade to TPM 1.2)

Power Supply

120W External Medical Grade PSU. Unit supports 12V, 19V-24VDC Input

Shock & Vibration

IEC60068-2-27 & IEC60068-2-64


7.96" x 7.67" x 2.28" (L,W,D)


5.2 lbs

Wall Mount

Custom Mounting Bracket for Wall, VESA, Din Rail or Rack Mount Solutions


Operating Temperature: 0°C~35°C

Relative Humidity

5%~95% (non-condensing)


UL60601-1, cUL60601-1, IEC60601-1, EN60601-1 electrical safety, FCC class A, CE, Energy Star 8, RoHS 2, EN55032 / EN55024

I/O Ports

2x USB 3.0 Ports
4x USB 2.0 Ports
2x Serial Ports (RS-232/422/485)
2x Serial Ports (RS-232)


1x Microphone Jack
1x Line Out
2x Built-in stereo speakers


3 Years* Standard with Optional Plans up to 5 Years


*Only for US-based customers.

Looking to download this information? Download PDF Version

How Cybernet Makes a Difference


Our devices include a 3-year warranty for manufacturing or assembly defects, with options for more extensive coverage.

Deployment & Imaging

We can deploy the final drive image for all your purchased units, saving you installation and setup time.

Technical Support

Our U.S.-based tech support team is here to assist with any technical issues, and it's free for the lifespan of our products.

Legacy Compatibility

Our embedded PCs have ports and features that connect with older medical devices and equipment, saving you from expensive replacements.


You can select the processor, operating system, and ports you need, giving you greater functionality without unnecessary expenses.

Less Than 0.5% Failure Rate

Our commitment to quality means our devices have a failure rate below 0.5%. We rigorously stress-test each unit, guaranteeing reliability.

Trusted by

We had worked with Cybernet before on our North Tower project, which was a huge success. Based on that relationship, it was really easy to put our trust in Cybernet for our cart project and anesthesia project. We couldn't be happier with the early results.
- Jonathan Schelmety, IS Project Coordinator Orlando Health Regional Medical Center

Frequently Asked Questions

I have a custom device I want to integrate inside the R6, can you make me a custom IO plate?

Absolutely! Please reach out to one of our sales representatives for more information.

Is the CyberMed R6 compatible with legacy devices?

Yes. As part of our customization options, you can select legacy ports that work with your hospital's older devices such as serial ports, or parallel ports.

Why should I buy a medical-grade computer versus a Dell or HP computer?

Opting for a medical-grade computer ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade computers and why they're superior to regular computers in our in-depth analysis.

Does the CyberMed R6 support Windows 11?

Yes. The processor and chipset are ready for Windows 11 and fully supported.

Do you provide drivers compatible with Microsoft Configuration Manager?

Yes. Cybernet publishes Microsoft Configuration Manager drivers on our support page. Should you have any questions, simply reach out to our support team for prompt support.
