Engineered with Intel® 13th/14th-Gen processors and NVIDIA RTX™ graphics, this IEC 60601-1 certified medical computer brings reliable edge diagnostics to any clinical environment.
Near-Patient Electrical Safety
5-7 Year Product Consistency
Year-over-Year
Windows 11, IoT, & Linux Compatible
Powers 4x 4K Displays
Supports NVIDIA RTX™ GPU configurations and up to 128GB DDR5 memory, optimized for real-time EMR data analytics, standard diagnostics, and machine learning models.
Measuring just 13" x 12.56" x 6", its space-saving enclosure fits effortlessly into thin wall mounts, small enclosures, or compact nursing stations.
Fully certified to global IEC 60601-1 and 60601-1-2 standards, ensuring low leakage current and full electromagnetic protection next to active patient monitoring telemetry.
Equipped with 7x SATA Gen 3.0 ports supporting RAID 0, 1, 5, and 10 arrays to guarantee absolute data redundancy and protect local diagnostic video records.
Built-in triple RJ45 LAN architecture (including 2.5Gb vPro support) allows simultaneous, isolated connections to hospital intranets, local imaging systems, and external medical machinery.
Equipped with multiple PCIe 5.0 and 4.0 expansion slots, the CyberMed Ai2 easily integrates specialized surgical video capture cards, medical frame grabbers, or secondary AI accelerators.
The Standard in Clinical AI Infrastructure
Scaling next-generation intelligence across an entire medical enterprise requires a careful balance of raw computational capabilities and physical versatility. The CyberMed Ai2 sets the standard for high-density edge deployments by condensing multi-display output and hardware acceleration into a small-form-factor design. When deployed alongside high-resolution medical grade monitors, this unit seamlessly runs diagnostic analytics, algorithmic triage models, and complex electronic health records software. By putting machine learning algorithms directly at the point of care, hospitals can bypass the latency, bandwidth, and privacy risks of pure cloud computing models.
Reduced Deployment Costs / ROI
Budgets in hospital IT leave zero room for redundant infrastructure replacements or expensive structural overhauls. The compact architecture of the CyberMed Ai2 provides an immediate return on investment by mounting onto your existing fleet of medical mobile carts without causing top-heavy imbalances or mechanical issues. Its native support for legacy connections ensures it interfaces cleanly with older diagnostic devices, saving networks from replacing expensive functional capital assets. This flexible box PC delivers an affordable bridge to edge computing, sparing facilities from standard expenditures tied to completely replacing older fleets with new all-in-one medical PCs.
Enterprise-Ready Implementation
Hospital IT directors require hardware that deploys predictably without specialized manual intervention. The CyberMed Ai2 arrives enterprise-ready, offering native driver and architecture validation across Windows 11 IoT, Windows 10, and Ubuntu Linux. For large health systems with highly specialized peripheral arrays or custom communication standards, our comprehensive OEM/ODM services can modify internal expansion paths, load enterprise drive images, or adapt legacy BIOS configurations before shipping. Boasting a rigorous design with a proven field failure rate of less than 0.5%, it provides dependable uptime across multi-facility healthcare campuses.
Certified Patient Safety
Using standard, commercial box PCs in patient care zones introduces dangerous risks, from unexpected electrical leakage currents to radio-frequency interference with critical care equipment. The CyberMed Ai2 eliminates these clinical vulnerabilities through strict laboratory certification to full IEC 60601-1 and 60601-1-2 standards. This elite isolation makes it an exceptionally safe processing partner for handheld medical tablets and patient monitoring equipment used in highly sensitive environments like the intensive care unit. Standardizing on a medically certified medical computer safeguards your clinical environment, ensuring total compliance with global regulatory guidelines.
| CPU Support |
Intel® 13th / 14th Generation Core™ i3, i5, i7, & i9 Processors |
| Chipset |
Intel® Q670E Chipset |
| Memory |
4x U-DIMM Slots (Up to 128GB 4400Mhz DDR5) |
| Operating System |
Windows 11, Windows IoT, Linux |
| Display |
Display Port x4 (Supports DP++ 1.4, up to 3840 x 2160 @ 60Hz) |
| AI/ML Card |
Up to NVIDIA RTX™ 4500 Blackwell |
| PCIe Slots |
1x PCIe 5.0 x16 Slot (1 X16 mode/ 2 x8 mode) |
| M.2 Slots |
1x M.2 E Key, Type 2230 for WIFI/BT device (PCIe x1 & USB2.0 & CNVI) |
| Networking |
1x Intel i210AT 1Gbe |
| Storage |
7x SATA Gen 3.0, Up to 6Gb/s, Support RAID 0,1,5,10 |
| Dimensions |
13.00" x 12.56" x 6.00" (L,W,D) |
| Weight |
17.8 lbs |
| Environment |
Operating Temperature: 0°C ~ 40°C |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, FCC Part 15 Subpart 15b, FCC Part 15 Subpart 15c, ICES-003, IC, CE, EU 2023/1542, EU RED, Energy Star, RoHS, WEEE, REACH, CA Prop 65, ISTA 3A |

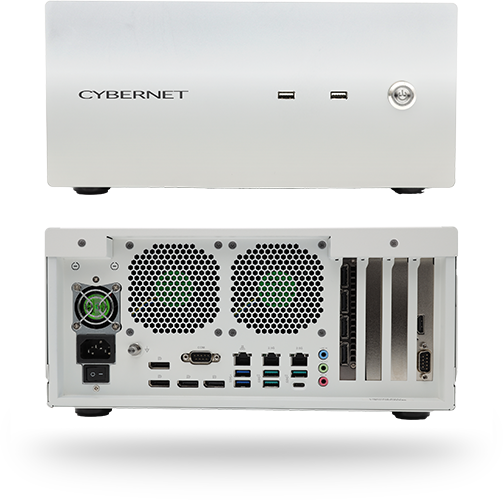

| I/O Ports |
2x USB 3.0 (Front Facing) |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
The CyberMed Ai2 supports up to the NVIDIA RTX™ 4000 ADA generation graphics card. This configuration is optimized to deliver high-performance AI inferencing and edge data analytics while operating efficiently within the system's compact, fan-regulated thermal envelope.
Yes. The CyberMed Ai2 includes a specialized universal mounting plate that supports both horizontal and vertical orientations. Its slim 6-inch depth allows it to mount flat against VESA brackets on small medical mobile carts, workstation arms, or inside flush wall mounts without causing structural instability or clearance issues.
Yes. The system motherboard is equipped with 7x SATA Gen 3.0 ports that fully support RAID 0, 1, 5, and 10 configurations. This allows hospital IT teams to set up automatic, local data mirroring across multiple solid-state drives (SSDs), ensuring zero clinical data loss if an active drive experiences a hardware error.
The triple RJ45 Ethernet configuration (featuring two 2.5Gb ports and one 1Gb port with Intel vPro support) allows complete network isolation. Hospitals can dedicate one port to the secure internal hospital network (EMR), the second port to local high-speed imaging arrays, and the third port to an isolated internet line for remote machine telemetry.
The CyberMed Ai2 is fully certified to UL60601-1, cUL60601-1, IEC 60601-1, and IEC 60601-1-2 standards. These rigorous certifications guarantee strict electrical leakage isolation and electromagnetic compatibility, ensuring the device will not interfere with patient monitoring equipment or life-support telemetry.
Yes. Through our deployment and imaging services, Cybernet can pre-configure the exact operating system build, security policies, driver packages, and clinical applications on the drive array during assembly. Every box PC arrives at your facility 100% plug-and-play ready for instant network onboarding.
The hardware platform is fully validated and optimized for Windows 11, Windows 10, Windows IoT Enterprise, and Ubuntu Linux distributions. Cybernet provides full SDK and software framework compatibility across all supported environments.
The outer chassis is constructed with high-durability, medical-grade materials designed to withstand frequent surface sterilization using harsh healthcare disinfectants like isopropyl alcohol or bleach wipes. The optimized airflow design keeps internal components safe from common airborne particulate and cleaning overspray.
For US-based customers, the CyberMed Ai2 comes standard with a comprehensive 3-year warranty covering assembly and manufacturing defects. Cybernet also offers extended coverage plans up to 5 years, along with optional accidental damage protection policies.
Yes. The I/O panel includes a multi-mode serial port (RS232/422/485) alongside up to 6x USB 3.2 and Type-C interfaces. This enables the box PC to serve as an edge computing hub for both modern machine learning hardware and legacy medical devices like diagnostic spectrometry machines or older patient monitors.
Complete your medical computing solution
"Surgical AI Engine"
"AI Clinical Performance"
"Medical Box PC"
Every Cybernet system is built to your exact requirements. We complete all configuration, imaging, and validation before shipment. Your team receives fully prepared units that can be deployed immediately, eliminating staging time, reducing IT workload, and avoiding costly delays.
Pre-configured drive images ready for your EMR system
Security and boot settings tuned to your IT policies
Barcoded and registered for your inventory system
Units arrive configured and ready for deployment
