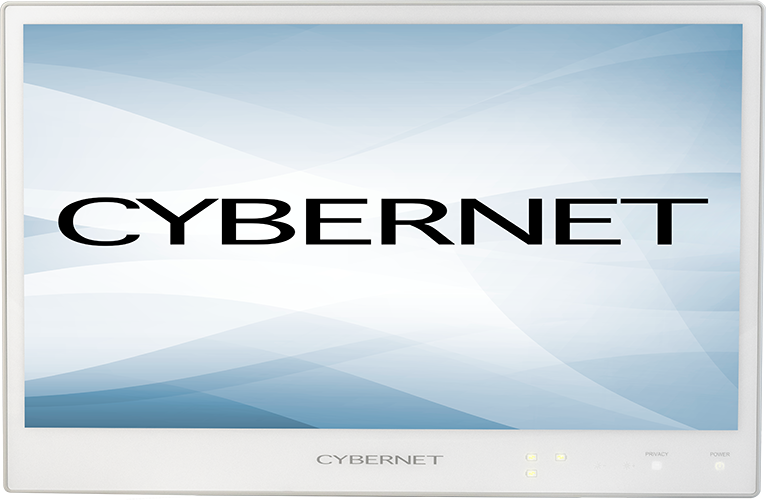

The CyberMed G22 is a medical-grade powerhouse designed for 24/7 patient care. Combining a fanless, antimicrobial design with integrated power redundancy, it ensures zero downtime during mission-critical workflows.
Near-Patient Electrical Safety
5-7 Year Product Consistency
Year-over-Year
Tap-and-Go Compatible
Epic, Oracle Cerner & All Major EMRs
| Display |
1920x1080 | 16:9 | 178°/178° Viewing Angle |
| CPU Support |
14th Generation Intel Ultra 5/7 Processors |
| Memory |
2x DDR5 SO-DIMM Sockets, Populated up to 64GB |
| Operating System |
Windows 11, Windows IoT, Linux |
| Video & Graphics |
Integrated Intel Graphics |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Networking |
1x 2.5Gigabit (GbE) LAN Intel i226LM |
| DC Power Out |
Optional DC Power Out for powering external devices such as a webcam or additional monitor |
| Wireless |
Intel WiFi 7 + Bluetooth 5.4 |
| Expansion Slots |
1x mPCIe Full-size slot |
| Storage |
1x 6Gbps Serial ATA III Port |
| TPM |
Version 2.0 Standard |
| Power Supply |
Medical Grade Power Supply with Universal input: 100~240V AC, 50-60Hz |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Pressure |
700 to 1060hPa (0~3000 meters) |
| Dimensions |
20.15" x 13.15" x 2.02" (L,W,D) |
| Weight |
13.3 lbs |
| Wall Mount |
Supports 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
4x USB 3.2 Gen1 |
| Audio |
Realtek High Definition Audio. Two built-in 3.0 watt speakers. |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| G Series 4K Webcam | Download PDF Version |
Passive heat-pipe cooling eliminates fans, preventing the exhaust of dust and contaminants. This design ensures silent operation and reduces maintenance requirements significantly.
Antimicrobial properties are baked into the resin. The IP65-rated front resists bleach and alcohol cleaners, allowing for thorough sanitization between patient interactions.
Touch sensitivity tuned for use with multiple layers of surgical gloves. Multi-touch PCAP technology provides responsive, accurate input even in demanding surgical environments.
Optional internal uninterruptible power supply provides up to 4 hours of backup power, ensuring critical workflows continue uninterrupted during power fluctuations or outages.
Rigorously tested and certified to IEC 60601-1 4th Edition standards, ensuring electrical safety and electromagnetic compatibility in patient care environments.
24-inch Full HD or 2K display options with 400 nits brightness and wide viewing angles. Optional anti-glare and privacy filters available for enhanced visibility.
Yes. The IEC60601 certifications and a variety of common connections such as Ethernet, USB-type A and C, and legacy RS-232 serial ports make our medical-grade CyberMed G Series extremely versatile. The medical panel PCs can be used in many different applications, including on Anesthesia machines.
We test our computers with a wide range of hospital-grade disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.
Cybernet can customize each medical panel PC to add a range of different touch glass options, including both embedded privacy filter and anti-glare film. We designed the CyberMed G Series so that even with hospital-grade disinfectants, these features will last the life of the computer without damage.
Yes, the CyberMed G Series can be configured with an optional internal battery that can sustain the computer for up to 4 hours.
Opting for a medical-grade computer ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade computers and why they're superior to regular computers in our in-depth analysis.
Yes. The processor and related components are ready for Windows 11 and fully supported.
Yes. Cybernet publishes Microsoft Configuration Manager drivers on our support page. Should you have any questions, simply reach out to our support team for prompt support.
Complete your medical computing solution
"AI Clinical Performance"
"Compact Exam Station"
"Bedside Touch Panel"
Every Cybernet system is built to your exact requirements. We complete all configuration, imaging, and validation before shipment. Your team receives fully prepared units that can be deployed immediately, eliminating staging time, reducing IT workload, and avoiding costly delays.
Pre-configured drive images ready for your EMR system
Security and boot settings tuned to your IT policies
Barcoded and registered for your inventory system
Units arrive configured and ready for deployment
Healthcare facilities served
Annual failure rate
| Display |
1920x1080 | 16:9 | 178°/178° Viewing Angle, optional 2560x1440 |
| CPU Support |
14th Generation Intel Ultra 5/7 Processors |
| Memory |
2x DDR5 SO-DIMM Sockets, Populated up to 64GB |
| Operating System |
Windows 11, Windows IoT, Linux |
| Video & Graphics |
Integrated Intel Graphics |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Networking |
1x 2.5Gigabit (GbE) LAN Intel i226LM |
| DC Power Out |
Optional DC Power Out for powering external devices such as a webcam or additional monitor |
| Wireless |
Intel WiFi 7 + Bluetooth 5.4 |
| Expansion Slots |
1x mPCIe Full-size slot |
| Storage |
1x 6Gbps Serial ATA III Port |
| TPM |
Version 2.0 Standard |
| Power Supply |
Medical Grade Power Supply with Universal input: 100~240V AC, 50-60Hz |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Pressure |
700 to 1060hPa (0~3000 meters) |
| Dimensions |
22.32" x 14.23" x 2.02" (L,W,D) |
| Weight |
14.8 lbs |
| Wall Mount |
Supports 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
4x USB 3.2 Gen1 |
| Audio |
Realtek High Definition Audio. Two built-in 3.0 watt speakers. |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| G Series 4K Webcam | Download PDF Version |
| Display |
1920x1080 | 16:9 | 178°/178° Viewing Angle |
| CPU Support |
14th Generation Intel Ultra 5/7 Processors |
| Memory |
2x DDR5 SO-DIMM Sockets, Populated up to 64GB |
| Operating System |
Windows 11, Windows IoT, Linux |
| Video & Graphics |
Integrated Intel Graphics |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Networking |
1x 2.5Gigabit (GbE) LAN Intel i226LM |
| DC Power Out |
Optional DC Power Out for powering external devices such as a webcam or additional monitor |
| Wireless |
Intel WiFi 7 + Bluetooth 5.4 |
| Expansion Slots |
1x mPCIe Full-size slot |
| Storage |
1x 6Gbps Serial ATA III Port |
| TPM |
Version 2.0 Standard |
| Power Supply |
Medical Grade Power Supply with Universal input: 100~240V AC, 50-60Hz |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Pressure |
700 to 1060hPa (0~3000 meters) |
| Dimensions |
20.15" x 13.15" x 2.02" (L,W,D) |
| Weight |
13.3 lbs |
| Wall Mount |
Supports 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
4x USB 3.2 Gen1 |
| Audio |
Realtek High Definition Audio. Two built-in 3.0 watt speakers. |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| G Series 4K Webcam | Download PDF Version |
| Display |
Medical Grade FHD LED Panel 1920x1080, 350 Nits (Optional 500 Nits) |
| CPU Support |
14th Generation Intel Ultra 5/7 Processors |
| Memory |
2x DDR5 SO-DIMM Sockets, Populated up to 64GB |
| Operating System |
Windows 11, Windows IoT, Linux |
| Video & Graphics |
Integrated Intel Graphics |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Networking |
1x 2.5Gigabit (GbE) LAN Intel i226LM |
| DC Power Out |
Optional DC Power Out for powering external devices such as a webcam or additional monitor |
| Wireless |
Intel WiFi 7 + Bluetooth 5.4 |
| Expansion Slots |
1x mPCIe Full-size slot |
| Storage |
1x 6Gbps Serial ATA III Port |
| TPM |
Version 2.0 Standard |
| Power Supply |
Medical Grade Power Supply with Universal input: 100~240V AC, 50-60Hz |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Pressure |
700 to 1060hPa (0~3000 meters) |
| Dimensions |
14.85" x 9.85" x 1.69" (L,W,D) |
| Weight |
6.6 lbs |
| Wall Mount |
Supports 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, IEC60601-1-2, EN60601-1, IEC62368-1 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE, REACH |
| I/O Ports |
4x USB 3.2 Gen2 |
| Audio |
Realtek High Definition Audio. Two built-in 3.0 watt speakers. |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| G Series 4K Webcam | Download PDF Version |
