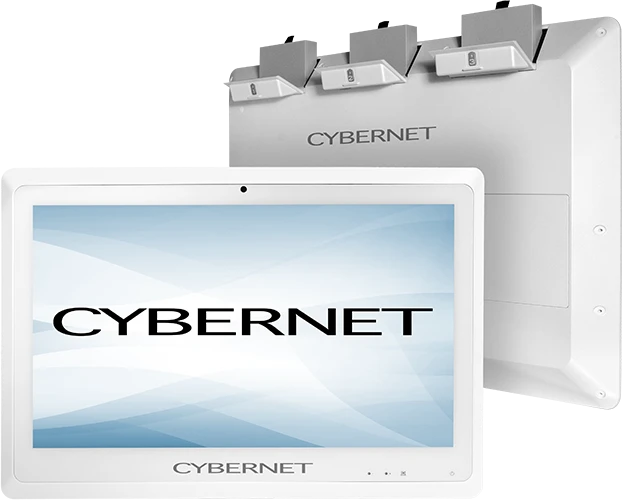

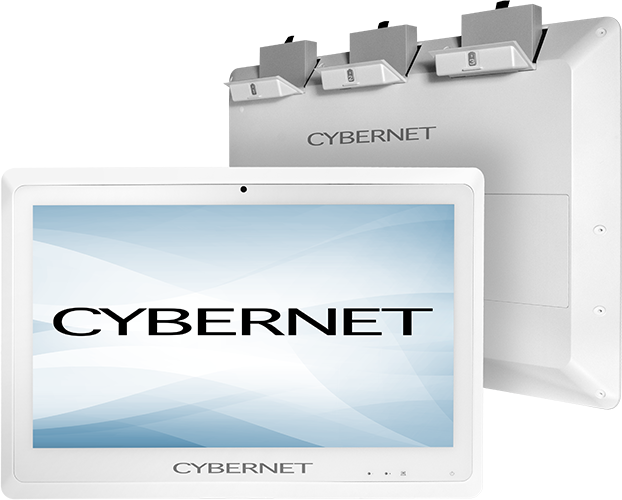

The CyberMed XB22 offers 24/7 mobility with hot-swappable batteries and a glove-friendly touchscreen. Built for the modern bedside, it eliminates power hunts and data entry bottlenecks to move at the speed of your staff.
Near-Patient Electrical Safety
5-7 Year Product Consistency
Year-over-Year
Tuned for Multiple Layers
24/7 Chemical Disinfection
| Display |
1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
3 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
21.75" x 14.50" x 1.92" (L,W,D) |
| Weight |
15.35 lbs w/o batteries | 18.35 lbs w/3 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
The hot-swappable battery system allows for 24/7 operation without ever needing to plug into a wall, keeping your mobile workstations in constant motion.
Our advanced PCAP technology is calibrated to register precise inputs even when the clinician is wearing multiple layers of surgical or nitrile gloves.
The touchscreen remains fully functional and accurate even when exposed to moisture or liquid cleaning agents during active clinical use.
The edge-to-edge glass surface is treated with antimicrobial properties, to protect the device itself from degradation.
By utilizing heat pipes instead of fans, these medical grade monitors prevent the intake and exhaustion of contaminated air in healthcare environments.
External charging bays ensure a fresh supply of power is always ready, allowing for seamless transitions between shifts with zero downtime.
All batteries have a one year warranty.
The sad truth is that no battery will last forever. Over the course of repeated cycles of charging and discharging, the chemical reactions that enable their function inevitably degrade. This will result in unexpected behavior, including less run time for the battery-powered medical monitor, which relies on the health of the batteries. At that point, the only option left is to replace it.
Cybernet strongly suggests replacing batteries every two years to continue the proper operation of the unit per its original specification.
We test our battery-powered medical monitors with a wide range of hospital-grade disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.
Cybernet can customize each battery-powered medical display to add a range of different touch glass options, including both embedded privacy filter and anti-glare film. We designed the CyberMed XB Series so that even with hospital-grade disinfectants, these features will last the life of the computer without damage.
Our DC out can provide up to 26 watts of continuous power for an external device. We have a large catalog of connectors we can supply including printers, scanners, cameras and many more. Please reach out to your Cybernet representative for more information.
Opting for a medical-grade monitor ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade monitor and why they're superior to regular monitor in our in-depth analysis.
Press and hold the front power button for 10 seconds to turn off all power, including the optional DC output equipment. Simply tap the button one more time for 1 second to turn on all power.
Yes, exact same form and fit. Placing our AIO and monitor side by side has a very nice aesthetic because they are matching pairs. The AIO is just a bit heavier with the additional electronics inside to make it a computer.
On the rear housing of our XB monitors we place two labels that clearly indicate the voltage levels of each output. Look for a yellow or blue label that indicate the exact color coded voltage level.
Complete your medical computing solution
"AI Clinical Performance"
"Compact Exam Station"
"Bedside Touch Panel"
Every Cybernet system is built to your exact requirements. We complete all configuration, imaging, and validation before shipment. Your team receives fully prepared units that can be deployed immediately, eliminating staging time, reducing IT workload, and avoiding costly delays.
Pre-configured drive images ready for your EMR system
Security and boot settings tuned to your IT policies
Barcoded and registered for your inventory system
Units arrive configured and ready for deployment
Healthcare facilities served
Annual failure rate
| Display |
1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
3 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
25.50" x 14.80" x 2.10" (L,W,D) |
| Weight |
17.75 lbs w/o batteries | 20.65 lbs w/3 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
| Display |
1920x1080 | 16:9 | 250nits | 178°/178° Viewing Angle | 3000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
3 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
21.75" x 14.50" x 1.92" (L,W,D) |
| Weight |
15.35 lbs w/o batteries | 18.35 lbs w/3 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
| Display |
1600x900 | 16:9 | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
2 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
20.35" x 14.37" x 1.95" (L,W,D) |
| Weight |
16.75 lbs w/o batteries | 18.75 lbs w/2 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
| Display |
1280x1024 | 5:4 (4:3) | 250nits | 170°/170° Viewing Angle | 1000:1 Contrast Ratio |
| Touch Screen |
PCAP Multi-Touch with Optional Antiglare Technology |
| Battery |
2 x Hot-swappable Batteries |
| DC Power Out |
Optional: Power Module with 2 x Variable Voltage DC Power output for External Devices |
| Viewing Angle |
Horizontal 178 Degrees , Vertical 170 Degrees (Typical) |
| Number of Colors |
16.7 Million |
| Brightness |
250 cd/m2 |
| Response Time |
25ms |
| Power Supply |
120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. |
| IP Rating |
IP65 Sealed Front Bezel and IPX1 Back Cover |
| Dimensions |
17.75" x 16.50" x 3.00" (L,W,D) |
| Weight |
15.25 lbs w/o batteries | 17.25 lbs w/2 batteries |
| Wall Mount |
Supports 75mm & 100mm VESA mounting holes |
| Environment |
Operating Temperature: 0°C~35°C |
| Relative Humidity |
10%~90% (non-condensing) |
| Certifications |
UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE |
| I/O Ports |
1x HDMI - In |
| Audio |
2-Channel 2 Watt Rear-Facing Speaker |
| Warranty |
3 Years* Standard with Optional Plans up to 5 Years |
|
Notes: |
| Internal UPS Battery | Download PDF Version |
| Three Bay Battery Multicharging Station | Download PDF Version |
