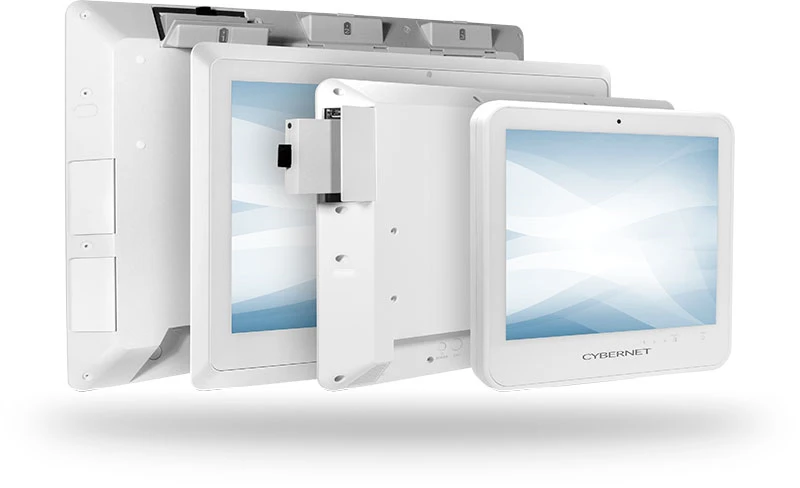

Battery-Powered Medical Monitor CyberMed XB Series

Available Sizes:

24"

22"

20"

19"

Battery-powered medical monitors offer clinicians maximum mobility and operational flexibility. The CyberMed XB Series can run for up to 21 hours per charge, making it ideal for mobile workstations, bedside documentation, telehealth, and other point-of-care applications. Its hot-swappable batteries allow staff to replace power sources without shutting down or interrupting patient care workflows.

Key Features:

Responsive Touchscreen: Precise inputs even when you're wearing gloves.
Battery-Powered: Go cable-free and enjoy greater mobility and operational flexibility.
DC Power Output: Conveniently power other peripheral devices.

Battery Powered Medical Monitor with Battery Charging Station

Hot-Swappable Battery Power

Featuring three hot-swappable batteries, this medical monitor allows for easy battery replacement as needed, ensuring uninterrupted operations without reliance on cables or power outlets.

Up to 21 Hours of Continuous Use: Long battery life supports full clinical shifts, remote procedures, or extended rounds without needing to find a wall outlet. Staff can rely on the monitor for telehealth, bedside documentation, and point-of-care applications across the facility.
Cost Savings: On average, a battery-powered medical monitor and non-powered cart cost 40% less than a traditional computer and powered cart solution. Hospitals benefit from lower energy costs, fewer power infrastructure upgrades, and reduced downtime during electrical interruptions.
Rapid Swap Workflow: Hot-swappable batteries allow multiple staff members to rotate monitors between departments without waiting for charging, ensuring devices are always ready for patient care.

Crystal-Clear Touchscreen Display

The CyberMed XB Series combines a high-resolution HD display with a PCAP multi-touch touchscreen, optimized for fast, precise interactions in clinical settings.

Smart Touchscreen: It detects inputs accurately, even when the user is wearing gloves, or there are liquids on the screen.
Image Enhancing Technology: The crisp, HD display improves visibility of EHRs, lab results, and diagnostic imaging, helping clinicians make more accurate decisions and reducing the likelihood of misreads.
Customizable Options: Optional anti-glare or privacy filters improve screen visibility in bright rooms, protect patient data, and maintain HIPAA compliance, particularly in shared or open care areas.

Battery-Powered Medical Computer with Antimicrobial Housing

Certified and Rated for Medical Use

Our battery-powered medical displays are third-party tested and certified to the highest standards possible, making them safe and ready for use in medical environments.

Antimicrobial* Housing: The monitor enclosure uses antimicrobial technology to reduce the risk of cross-contamination, supporting infection control protocols and hospital sanitation requirements.
Electrical Safety: IEC 60601-1 certification safeguards users from electrical hazards, ensuring safe operation even in critical care areas with sensitive equipment nearby.
Electromagnetic Harmony: Designed to coexist with other medical devices, the monitor does not interfere with diagnostic imaging, patient monitoring, or treatment equipment, ensuring reliable data capture and device interoperability.
IP65 Dust & Liquid Protection: The front bezel is resistant to spills, fluids, and cleaning agents, allowing frequent disinfection with hospital-grade solutions without risking damage to internal components.

Versatility & Flexibility

EHR Management

A battery-powered medical monitor and unpowered cart is the perfect lightweight solution for accessing and reviewing EHRs as healthcare providers perform charting tasks.

Point of Care and Clinical Documentation

Battery-powered medical monitors are an excellent choice for documentation, taking notes on patient treatment outcomes, and recording their assessments.

Imaging and Diagnostic Applications

With their HD displays, battery-powered medical monitors are ideal for reviewing imaging and making diagnoses.

Specifications

Display	24" & 22": 1920x1080 \| 16:9 \| 250nits \| 178°/178° Viewing Angle \| 3000:1 Contrast Ratio 20": 1600x900 \| 16:9 \| 250nits \| 170°/170° Viewing Angle \| 1000:1 Contrast Ratio 19": 1280x1024 \| 5:4 (4:3) \| 250nits \| 170°/170° Viewing Angle \| 1000:1 Contrast Ratio
Touch Screen	PCAP Multi-Touch with Optional Antiglare Technology
Battery	24" & 22": 3 Hot Swap Batteries 20" & 19": 2 Hot Swap Batteries
DC Power Out	Optional: Power Module with 26 Watts of Power Available for External Devices
Viewing Angle	Horizontal 178 Degrees , Vertical 170 Degrees (Typical)
Number of Colors	16.7M
Brightness	250 cd/m2 \| 4k Models: 300 cd/m2
Response Time	25ms
Video Input	HDMI
Power Supply	120W Medical Grade Power Supply. Input: Universal 100~240V AC, 50-60Hz. Supports Output Range: DC18V-19V. 6.3A Adapters. 12V/24V Support with Optional DC Converter
Waterproof	IP65 Sealed Front Bezel and IPX1 Back Cover
Dimensions	CyberMed XB24: 23.50" x 14.80" x 2.10" (L,W,D) CyberMed XB22: 21.75" x 14.50" x 1.92" (L,W,D) CyberMed XB20: 20.35" x 14.37" x 1.95" (L,W,D) CyberMed XB19: 17.75" x 16.50" x 3.00" (L,W,D)
Weight	CyberMed XB24: 17.75 lbs w/o batteries \| 20.65 lbs w/3 batteries CyberMed XB22: 15.35 lbs w/o batteries \| 18.35 lbs w/3 batteries CyberMed XB20: 16.75 lbs w/o batteries \| 18.75 lbs w/2 batteries CyberMed XB19: 15.25 lbs w/o batteries \| 17.25 lbs w/2 batteries
Wall Mount	Supports 75mm & 100mm VESA mounting holes
Environment	Operating Temperature: 0°C~35°C
Relative Humidity	10%~90% (non-condensing)
Certifications	UL60601-1, cUL60601-1, IEC60601-1, EN60601-1, UL60950 electrical safety, FCC class B, CE, Energy Star, RoHS, WEEE
I/O Ports	1x HDMI - In 1x USB (for touchscreen) 2x USB3.0 1x 4Pin DIN power Jack 1x Debug Service Port 2x WiFi Passthrough
Audio	2-channel 2Watt rear-facing speaker
Warranty	3 Years* Standard with Optional Plans up to 5 Years
	Notes: *Only for US-based customers.

Looking to download this information? Download PDF Version

Related Accessory Tech Specs

Hot Swappable Battery	Download PDF Version
Three Bay Battery Multicharging Station	Download PDF Version

What Makes Cybernet Different

Warranty

Our devices include a 3-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty and accidental damage protection for extra coverage.

Deployment-Ready Design

Our medical monitors arrive fully assembled and configured for immediate use, allowing healthcare staff to quickly integrate them into mobile carts, workstations, or clinical environments without extra setup.

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues free of charge for the lifetime of our products, unlike manufacturers who charge for telephone support after a year.

Legacy Compatibility

Our medical monitors have ports that connect with older devices and equipment, saving you the expense of costly replacements.

Customization

We offer a range of features to choose from, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing before shipment ensure you get the best quality, with e a failure rate below 0.5%.

Trusted by

The displays are large, bright, and stand up to the harsh environment including COVID-19 isolation rooms where they are subjected to frequent and repeated decontamination/sanitization routines.

- Jesse Nath, Sr Director of Information Technology Regional Medical Center of San Jose

Frequently Asked Questions

What is the warranty on your batteries and what are the maintenance intervals for the battery replacements?

All batteries have a one year warranty.

The sad truth is that no battery will last forever. Over the course of repeated cycles of charging and discharging, the chemical reactions that enable their function inevitably degrade. This will result in unexpected behavior, including less run time for the battery-powered medical monitor, which relies on the health of the batteries. At that point, the only option left is to replace it.

Cybernet strongly suggests replacing batteries every two years to continue the proper operation of the unit per its original specification.

What hospital-grade disinfectants are compatible with your battery-powered medical monitors?

We test our battery-powered medical monitors with a wide range of hospital-grade disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.

Are there optional embedded privacy filters for HIPAA compliance or anti-glare options for harsh lighting environments?

Cybernet can customize each battery-powered medical display to add a range of different touch glass options, including both embedded privacy filter and anti-glare film. We designed the CyberMed XB Series so that even with hospital-grade disinfectants, these features will last the life of the computer without damage.

How much power can your DC out provide and can you provide me the connector to my device?

Our DC out can provide up to 26 watts of continuous power for an external device. We have a large catalog of connectors we can supply including printers, scanners, cameras and many more. Please reach out to your Cybernet representative for more information.

Why should I buy a medical-grade monitor versus a standard monitor like those from ELO, Asus, etc?

Opting for a medical-grade monitor ensures enhanced patient and staff safety, regulatory compliance, and suitability for the unique demands of healthcare environments, making it the preferred choice for medical applications. You can learn more about medical-grade monitor and why they're superior to regular monitor in our in-depth analysis.

How can I do a complete power cycle on my battery-powered medical monitor?

Press and hold the front power button for 10 seconds to turn off all power, including the optional DC output equipment. Simply tap the button one more time for 1 second to turn on all power.

Are your CyberMed XB monitors the same dimensions as your all-in-one PCs?

Yes, exact same form and fit. Placing our AIO and monitor side by side has a very nice aesthetic because they are matching pairs. The AIO is just a bit heavier with the additional electronics inside to make it a computer.

How can I tell what voltage the DC output is set to?

On the rear housing of our XB monitors we place two labels that clearly indicate the voltage levels of each output. Look for a yellow or blue label that indicate the exact color coded voltage level.
