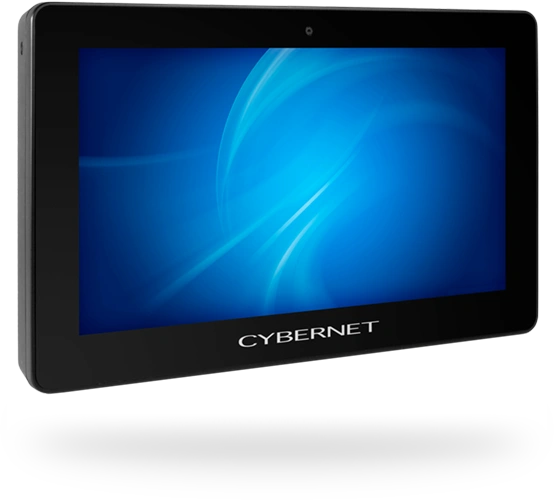

PoE-Powered PC iOne M12

PoE-Powered PC
  • PoE-Powered PC Thumbnail
  • PoE-Powered PC Left Angle Thumbnail

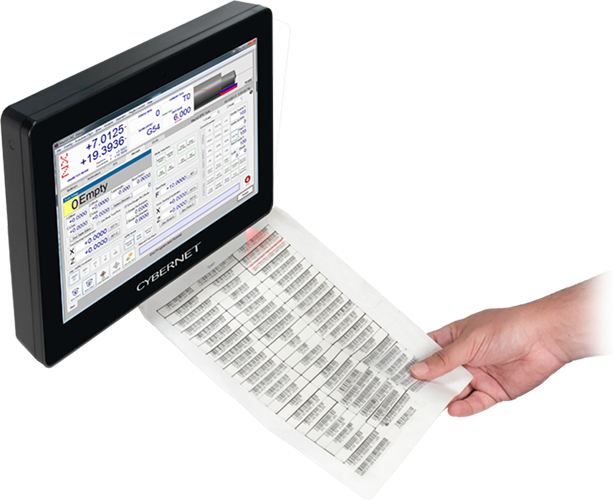

  • PoE-Powered PC Scanning Barcode Thumbnail
  • PoE-Powered PC Ports Thumbnail
  • PoE-Powered PC Time Clock Thumbnail
Get Quote

Experience seamless integration and energy efficiency with our iOne M12 PoE-powered PC, which combines data and power delivery over a single cable. Ideal for dynamic workspaces with limited access to power outlets, this PoE-powered computer lowers installation and operational costs.

Key Features:
  • Power Over Ethernet: Consolidate cables and make installation a breeze.
  • Compact Design: With a sleek 12" footprint, you can fit it anywhere.
  • Powerful Performance: Run programs smoothly with a reliable Intel CPU.

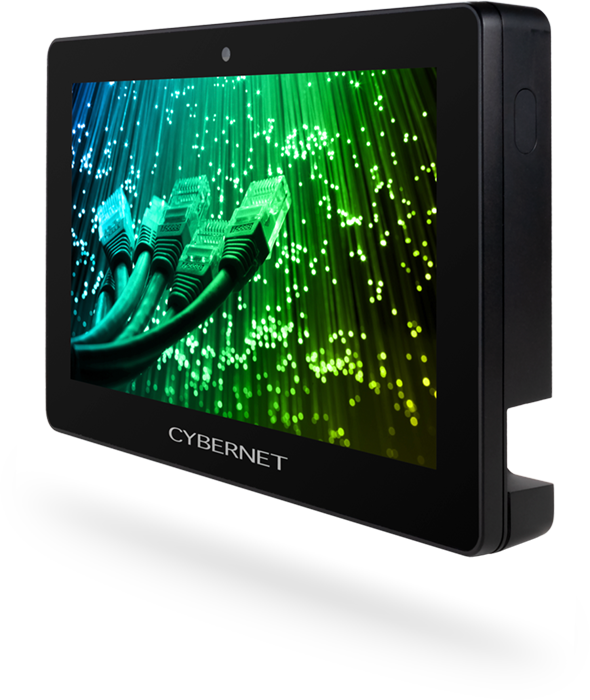

Power Over Ethernet

Power Over Ethernet

Create a tidy and efficient workspace without cable clutter. The iOne M12 PoE computer streamlines your technology setup with easy integration into existing networks, maximizing energy efficiency and reducing the need for costly infrastructure modifications.

  • Energy-Efficient: A PoE computer uses just 50% of the power a standard all-in-one PC does.

  • Reduced Cable Clutter: Create a safe and efficient space by minimizing cable chaos and the risk of tripping.

  • Easy Deployment: Avoid installation and regulatory hassles that come with adding conventional power lines.

Capable Performance

Capable Performance

Don't be deceived by the size - this PoE-powered PC packs a punch. We use proven components that can handle demanding tasks with ease, delivering fast and reliable performance 24/7.

  • Operating Systems: Support Windows 7, 10, and Linux-based systems for greater versatility.

  • Processing Power: Dependable Intel Quad Core CPU delivers unfaltering performance.

  • Memory and Storage: With up to 8 GB RAM and upgradable drive supporting up to 512 GB SSD, you can easily multitask and store ample data.

Flexible Design

Flexible Design

The iOne M12 PoE-powered PC is designed to cater to both power efficiency and adaptable usability. Whether in corporate, educational or institutional setting, the flexible features streamline operations.

  • I/O Ports: A range of modern and legacy ports make compatibility a breeze.

  • IP65 Rating: Keep dust and liquids out of the casing while simplifying cleaning.

  • Fanless Cooling: Fewer moving parts mean better reliability and quieter operation.

Incredibly Versatile PoE-Powered PC

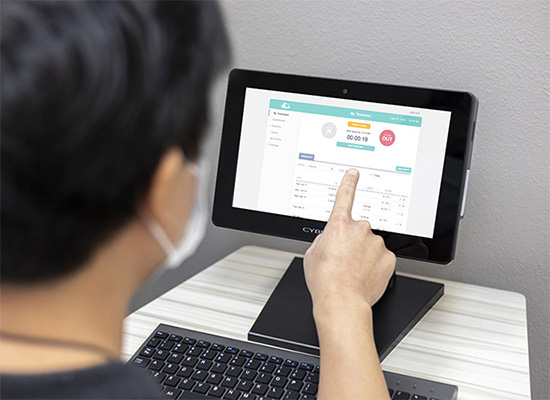

Clock In

Clock In

The touchscreen makes it easy for employees to clock in and out of their shifts.

Security Cameras

Security Cameras

Improve surveillance systems with reliable connectivity and power supply for optimal security camera performance.

User Terminal

User Terminal

Give users an intuitive interface for placing orders, checking inventory, managing machinery, and more.

Specifications

Display

FHD LED Panel | 1920x1080 | 300nits | 178°/178° Viewing Angle | 800:1 Contrast Ratio

CPU Support

Intel Quad Core J1900 CPU

Chipset

Integrated

Memory

1x DDR3L 1333MHz SO-DIMM sockets, populated up to 8GB

Operating System

Windows 10, Windows IoT, Windows 8.1, Windows 7, Linux

Video & Graphics

Intel HD Graphics

Touch Screen

PCAP Multi-Touch

Networking

1x Gigabit (Gbe) Intel i210 | 1x Gigabit (Gbe) Realtek RTL8111

Wireless

802.11 a/b/g/n + Bluetooth 4.2

BIOS

Insyde with PXE, LAN & USB boot support

Expansion Slots

1x Full-size Mini PCI Express slot (Unavailable with POE Option)
1 x M.2 2230 A/E Key

HDD Support

1x 128GB Solid State Drive up to 512GB

TPM

Version 2.0 Standard. Optional: Version 1.2

Webcam

5 Megapixel Front-facing

Color

Black

Power Supply

72W PSU. Input: AC 100-240V, 1.5A 50-60Hz. Output: 19VDC, 3.78A.
Power Over Ethernet (POE) Support via 802.3bt
12V/24V Support with Optional DC Converter

Waterproof

IP65 Sealed Front Bezel and IPX1 Back Cover

Dimensions

12.06" x 7.76" x 1.42" (L,W,D)

Weight

3.6 lbs

Wall Mount

Supports 75mm VESA mounting holes

Environment

Operating Temperature: 0°C~40°C

Relative Humidity

10%~90% (non-condensing)

Certifications

UL60950, FCC Class B, CE, Energy Star, IP65 Sealed Front Bezel

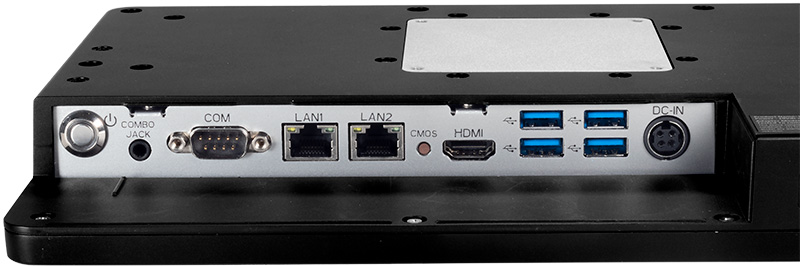

I/O Ports

4x USB 3.0 Ports
1x Audio Combo Jack
1x HDMI Port
1x RS232, option to expand to 4 COM ports

Audio

Realtek ALC269 High Definition Audio. One built-in 2.0 watt stereo speaker with two audio jacks for Audio Line Out, and Microphone.

Warranty

2 Years* Standard with Optional Plans up to 5 Years



Notes:
*Only for US-based customers.

Looking to download this information? Download PDF Version

How Cybernet Makes the Difference

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Warranty

Our devices include a 4-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty.

Customization

We offer a range of processors, operating systems, and features, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing ensures that our devices have a failure rate below 0.5%.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.
- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

What cleaners or disinfectants are compatible with your units?

We test our computers with a wide range of disinfectants to ensure compatibility. This includes 70% IPA (Isopropyl Alcohol), Cavi Wipes, Sani-Cloth Wipes and 6% Sodium Hypochlorite. You can find a list of compatible disinfectants in our knowledge base.

Can I use leather or rubber gloves with your touchscreens?

The standard touchscreen on our industrial units are PCAP-type similar to the common smartphone touchscreen. As such, they will not work with leather or rubber gloves. We do offer a secondary touchscreen option for special projects that are resistive type and can support both leather and rubber gloves. Please reach out to our sales team for additional information.

Do you offer an anti-glare display?

Yes. We offer an anti-glare option on all of our industrial units to overcome bright areas.

Why should I buy an industrial computer versus a Dell or HP computer?

Opting for an industrial-grade computer ensures enhanced reliability and profit-loss from down time. Whether it's due to heavy vibrations, constant exposure to dust and water, or a high chance of damage, these environments demand a different kind of computer that is designed to operate in these conditions such as our IPC units. Additionally, the typical Dell or HP computer only offers the latest and greatest ports and options, following the consumer PC market. However often times industrial applications require more legacy ports such as serial/parallel ports or GPIO/DIO.

What kind of PoE does the unit support?

The unit configured without the internal battery option can be powered by PoE+ (25.5W), while the internal battery models will require PoE++/Ultra (60W+).
