PoE Mini PC iPC E2is

The iPC E2is PoE mini PC is designed for industrial environments where space efficiency, simplified cabling, and reliable performance are critical. By combining compact fanless computing with integrated Power over Ethernet, this system supports streamlined deployments without sacrificing durability. Explore related solutions in our industrial computers lineup or review common deployment scenarios across industrial use cases.

Key Features:

Integrated PoE Support: Power compatible external devices directly from the system to reduce cabling and installation complexity.
Fanless Architecture: Passive cooling eliminates moving parts, improving reliability in dusty or vibration-prone environments.
Compact Form Factor: Designed for installations where space is limited but industrial reliability is required.

Power Over Ethernet (PoE) Capability

The iPC E2is simplifies system design by delivering both data and power through Ethernet connections. This allows connected devices to operate without separate power supplies.

Supports Powering External Devices: Enables direct power delivery to compatible peripherals through PoE-enabled ports.
Reduced Infrastructure Complexity: Minimizes cabling requirements and simplifies installation in industrial deployments.
Reliable Power Delivery: Designed to maintain stable performance while supporting PoE-powered devices.

Industrial-Grade Design

Built to operate in challenging industrial conditions, the iPC E2is delivers dependable performance where consumer-grade systems often fall short.

Fanless Reliability: Eliminates points of mechanical failure while supporting long-term continuous operation.
Environmental Tolerance: Designed to operate reliably across the temperature and humidity ranges specified in the product documentation.
Durable Construction: Suitable for environments exposed to vibration, dust, or variable operating conditions.

Versatile for Industrial Use

The iPC E2is is well-suited for a wide range of embedded and industrial applications that require compact computing with PoE functionality.

Edge Deployments: Supports localized processing close to data sources.
Automation Systems: Integrates easily into control and monitoring environments.
Networked Devices: Ideal for deployments that rely on PoE-powered peripherals.

The Perfect PoE Mini PC for All Your Needs

Simplified Storage Management

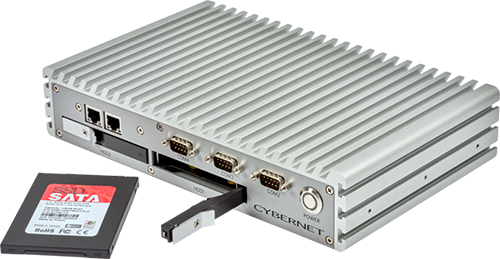

The locking drive bays let you quickly and easily swap out drives as needed, expanding your PoE PC's flexibility.

Flexible Mounting Options

The universally-compatible mount allows you to attach your PC wherever it's needed most.

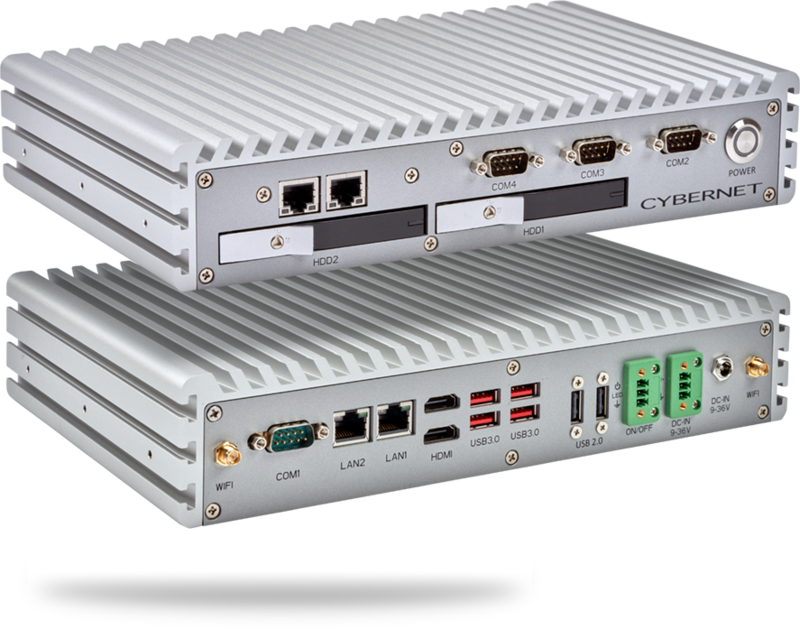

High-Performance Connectivity

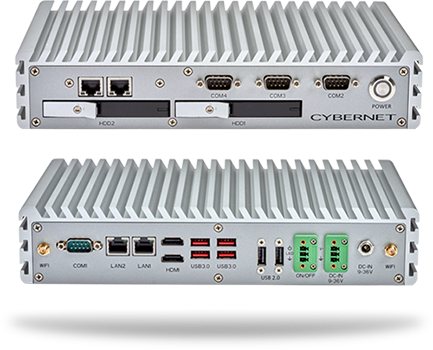

Our PoE mini PC comes with a full range of both modern and legacy ports, letting you interface with a broader range of equipment.

iPC E2is Specifications

CPU Support	8th Generation Intel Core i5 & i7 Processors
Chipset	Integrated
Memory	2x DDR4 2133MHz SO-DIMM sockets, populated up to 64GB (32GB x 2)
Operating System	Windows 11, Windows 10, Windows IoT, Windows 8.1, Windows 7, Linux
Video & Graphics	Intel UHD Graphics for 8th Generation Intel Processors
Networking	1x Gigabit (Gbe) LAN Intel i211AT 1x Gigabit (Gbe) LAN Intel 1219LM 2x Gigabit (Gbe) Intel I210 w/IEEE 802.3at (25.5W) Power output per port
Wireless	Intel Dual Band Wireless 802.11 a/b/g/n/ac + Bluetooth 5.1
Expansion Slots	1x miniPCIe (Full-Size) 1x M.2 2280 M Key SSD 1x M.2 2240 A+E Key
HDD Support	2x 6Gbps Serial ATA III ports
Display Outputs	2x HDMI (4096 x 2304 with HDMI 1.4a @ 24 Hz) Dual Monitor Capabilities
Power Supply	120W External AC Power Supply. Output: 19V 6.3A
DC-IN	Supports 9-36V DC-IN
Shock & Vibration	IEC60068-2-27 & IEC60068-2-64
Dimensions	10.74" x 6.65" x 2.16" (L,W,D)
Weight	5 lbs
Wall Mount	Custom Mounting Bracket for Wall & VESA Mount Solutions
Environment	Operating Temperature: -25°C~70°C
Relative Humidity	10%~95% (non-condensing)
Certifications	FCC Class B, CE, RoHS 2.0, EN50155, EN50121-3-2, Energy Star, IEC60068-2-64 , IEC60068-2-27
I/O Ports	4x USB 3.1 Ports, 2x USB 2.0 Ports 4x RS232 (1 port supports RS232/422/485) 2x Gigabit (Gbe) Ports 2x HDMI Out 1x Terminal block for Power on/off switch 1x Terminal DC-in (9~36V input) 1x DC-In (9~36V input)
Audio	Realtek ALC892 High Definition Audio, Dolby Digital 5.1 surround sound, 10 channels of enhanced sound quality, multiple audio streams and jack re-tasking
Warranty	1 Year Standard with Optional Plans up to 5 Years

Looking to download this information? Download PDF Version

How Cybernet Makes the Difference

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Warranty

Our devices include a 1-year warranty for manufacturing or assembly defects, with options for an extended warranty.

Customization

We offer a range of processors, operating systems, and features, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing ensure that our devices have a failure rate below 0.5%.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.

- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

How does the iPC E2is handle cold crank voltage dips?

The iPC E2is supports an ignition control input designed to protect against voltage dips during engine start. The system will not power on until the ignition signal is detected. Once detected, an internal timer begins a countdown (default is 30 seconds, programmable), allowing voltage to stabilize before the computer automatically powers on.

What kind of video card can I put inside the iPC E2is?

The iPC E2is can accommodate lower power video cards since it is a fanless unit. Cybernet has deployed many units with Nvidia GT1030 or similar class video cards. Please note that adding a video card will limit the operating temperature of the unit to 0°C-35°C.

Do you offer a service to load my image onto the units before they leave your facility?

Yes. All products sold by Cybernet undergo final assembly and quality control in the USA. We offer free software image integration services to save our customers a time-consuming step in their process of loading the software image. Simply contact our technical services team or your account manager to get started.

Why should I choose an industrial computer over a Dell or HP PC?

Industrial-grade computers are built for environments where reliability is critical and downtime can be costly. They are engineered to withstand harsh conditions—such as heavy vibration, exposure to dust or water, and increased risk of physical damage—where typical consumer PCs are not designed to survive. Our IPC units, for example, are specifically designed for continuous operation in these demanding settings.

Additionally, mainstream computers from brands like Dell or HP tend to prioritize the latest consumer features and ports. Industrial applications, however, often rely on legacy connectivity such as serial, parallel, or GPIO/DIO ports. Industrial PCs continue to support these interfaces, ensuring compatibility with existing equipment and long-term operational stability.

Can the iPC E2is support RAID?

Yes, the iPC E2is includes built-in RAID functionality supporting RAID 0 and 1.

What devices can be powered using PoE?

The iPC E2is can power compatible PoE-enabled devices such as cameras, sensors, and other network-connected peripherals.

Can the iPC E2is be installed in confined spaces?

Yes. Its compact form factor allows deployment in cabinets, enclosures, and other space-limited environments.
