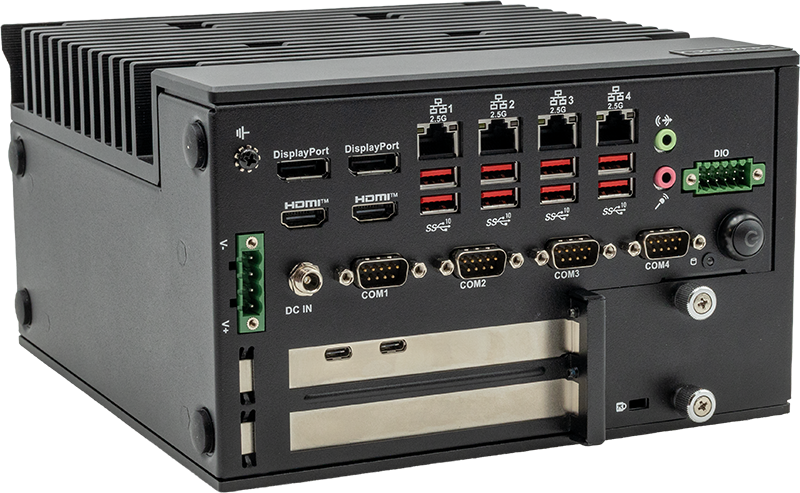

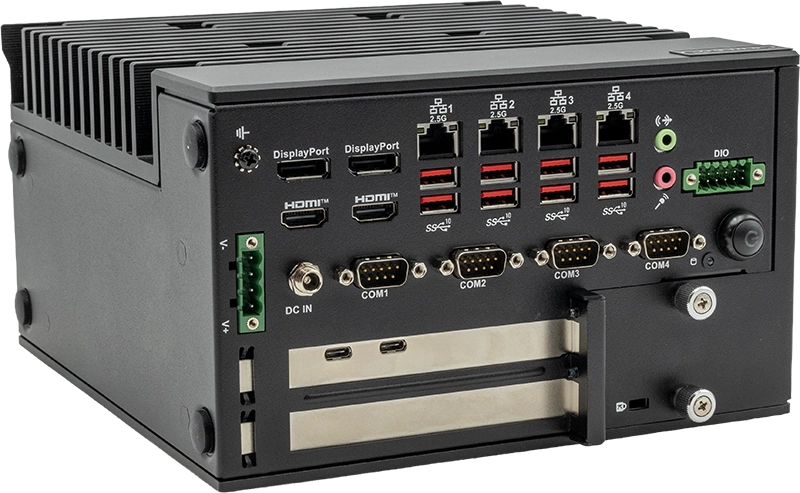

Mini PC with PCIe Slot iPC R40

Meet Cybernet's next-generation iPC R40 mini PC with PCIe slots. An industrial-grade platform designed for edge computing, automation, and AI workloads. Combining a compact box PC form factor with full-size PCIe expansion slots offers maximum versatility. Explore more rugged mini PCs or customize your configuration to fit your workflow.

Key Features:

PCIe Expansion: Full-size PCIe slots to support add-on cards, accelerators, and specialized I/O cards.
Quad Display: Two HDMI + Two DP connections to support independent quad 4K displays.
Designed for Industrial: Ultra-wide 8-48VDC power input support, quad 2.5 GbE ethernet, and isolated GPIO ports.

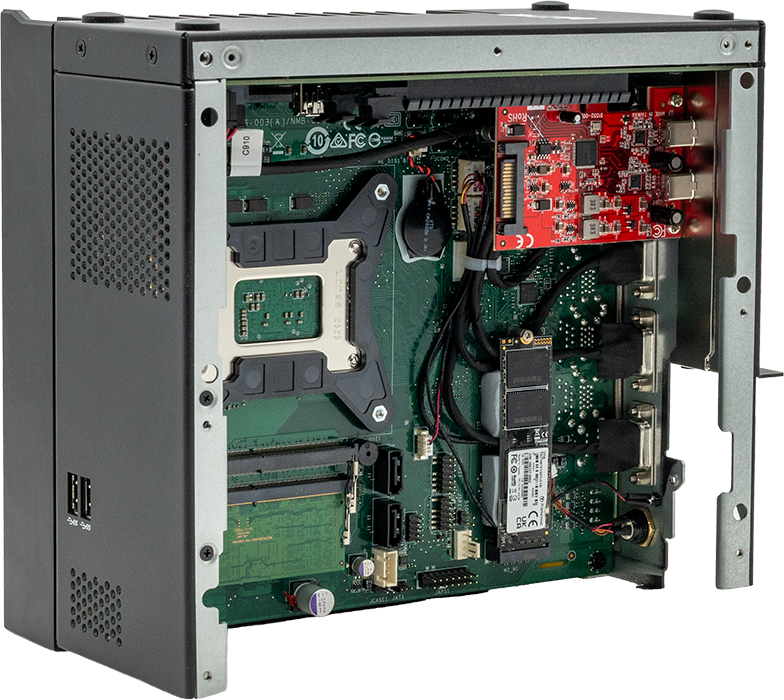

PCIe Expansion Slots

With dual PCI Express expansion slots, the iPC R40 supports scalable expansion for specialized hardware. Add USB expansion cards, network cards, RAID controllers, and even GPU's to meet application requirements.

AI Vision: Add an AI accelerator for Edge inferencing, Smart Cameras or Optical inspection applications.
Expanded Functionality: Boost video output, increase network capabilities, or support data redundancy.
Future-Proof: Engineered for long-term deployment and scalability, the PCIe expansion allows the iPC R40 to adapt, rather than being replaced.

Industrial-Grade Design

Downtime is expensive. Don't risk outages and lost productivity by relying on a consumer PC that wasn't built to run 24/7 in critical environments. The iPC R40 is engineered to meet rigorous industrial standards for long-term durability and performance. Whether deployed in an AGV/AMR Robot, factory floor, or an offshore oil & gas platform, the unit remains stable under constant vibration and temperature fluctuations.

IEC 60068-2: Designed to withstand shock and impact, ensuring reliable operation in demanding industrial and mobile environments.
Extreme Temperatures: Operates between -10°C and 50°C with humidity resistance up to 95 percent.
Fanless Cooling*: Passive cooling eliminates moving parts, reduces maintenance needs, and keeps internal components free from dust and debris.

*Note: Adding expansion cards may require a fan depending on the card.

Versatility Defined

With extensive I/O, flexible storage options, and thoughtful, easy access bays, the iPC R40 delivers versatile, reliable 24/7 operation in harsh industrial environments.

Powerful Desktop-Class Processors: Supports up to Intel® Core™ i9 processors for strong, scalable performance to power.

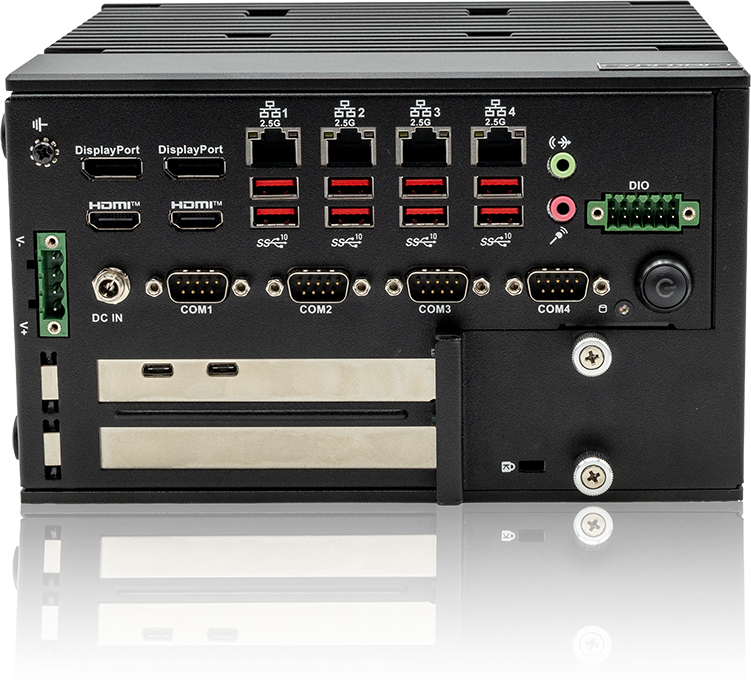

Wide Input Voltage Range: Accepts 8VDC to 48VDC power, seamlessly adapting to existing power distribution systems without requiring additional hardware.
Comprehensive I/O Ports: Rich legacy and modern ports including 2.5 GBe networking, DP+HDMI display ports, USB, COM, and Isolated GPIO interfaces.

Common Applications

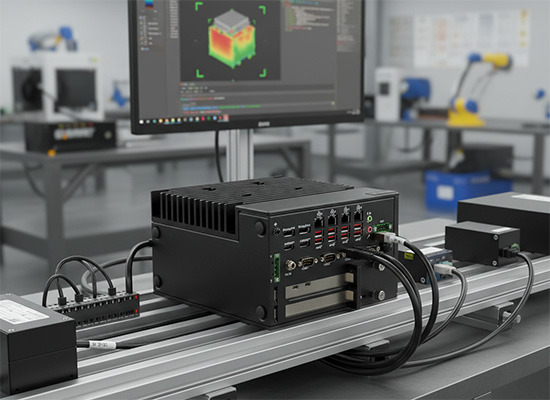

Machine Vision

Hook up a camera and let the iPC R40 inspect and verify visual elements on an assembly line.

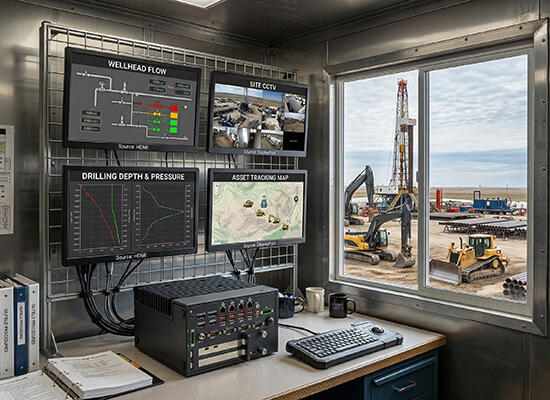

Four Display Support

The iPC R40 can power four simultaneous displays, making it ideal for control rooms or any application that benefits from extended or mirrored screens.

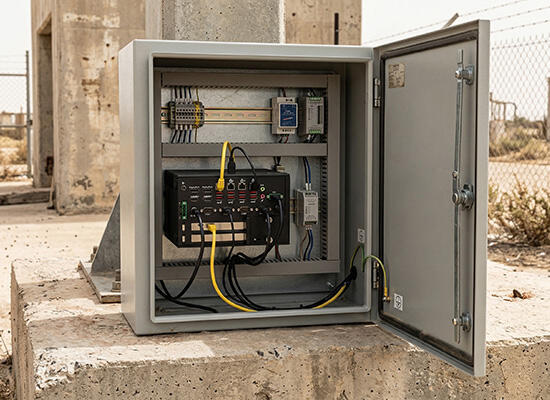

Outdoor Use

Thanks to its rugged construction, you can use the iPC R40 outdoors, where other computers would fail.

iPC R40 Specifications

CPU Support	14th Generation Intel Core i3, i5 & i7 Processors
Chipset	Intel R680E
Memory	2x DDR5 5600MHz SO-DIMM sockets, populated up to 64GB
Operating System	Windows 11, Windows IoT, Linux
Video & Graphics	Intel UHD Graphics
Networking	1x 2.5Gigabit (GbE) Intel i226LM 3x 2.5Gigabit (GbE) Intel i226V
Wireless	WiFi 7 + Bluetooth 5.4
Expansion Slots	1x M.2 2280 B/M key slot 2x PCIe x8 slots
Storage	2x 2.5" Solid State Drives up to 2TB
Display Outputs	2x DP / 4096 x 2304 @ 60Hz 2x HDMI / 4096 x 2304 @ 60Hz
TPM Support	Version 2.0 Standard
Power Supply	180W External Supply DC-IN: 8V~48V
Shock & Vibration	IEC60068-2-27 & IEC60068-2-64
Dimensions	9.4" x 5" x 8.5" (L,W,D)
Weight	9.7 lbs
Wall Mount	Wall Mounting Bracket
Environment	Operating Temperature: -10°C~50°C
Relative Humidity	10%~95% (non-condensing)
Certifications	FCC, CE, RoHS
I/O Ports	8x USB 3.2 Gen 2 Ports 2x USB 3.2 Gen 1 Ports 4x 2.5 Gigabit (GbE) LAN Ports 2x Serial Ports (RS-232/422/485) 2x Serial Ports (RS-232) 8x GPIO (4 GPI, 4 GPO) 1x MIC in, 1x Line out
Audio	Realtek ALC897 High Definition Audio. Two audio jacks for Audio Line Out and Microphone.
Warranty	1 Year Standard with Optional Plans up to 5 Years

Looking to download this information? Download PDF Version

How Cybernet Makes the Difference

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Warranty

Our devices include a 1-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty.

Customization

We offer a range of processors, operating systems, and features, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing ensures that our devices have a failure rate below 0.5%.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.

- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

What kind of video card can I put inside this unit?

Because this is a fanless mini PC with PCIe slots, it supports only low-power GPUs such as the Nvidia GT1030. Adding a GPU may reduce the supported temperature range to 0°C to 35°C.

Can I install my own PCIe card?

Yes. The unit is designed for modular PCIe expansion. Users can open the chassis to access the PCIe slots. Contact Cybernet technical support for recommended installation steps.

Do you offer a version of the unit with PCI slots?

No. This model supports only PCIe expansion in x16 and x4 configurations.

Can the unit support RAID?

Yes, the unit does come with built-in raid functionally to support RAID 0, 1.

Can the iPC R40 operate in high-vibration or mobile environments?

Yes. The iPC R40 is compliant to IEC 60068 standards, meaning it can withstand continuous vibration and sudden impact. This makes it suitable for forklifts, trucks, mobile workstations, and other environments where standard PCs may fail.

How many displays can the iPC R40 support at once?

The iPC R40 can support quad simultaneous 4K displays through its dual HDMI and dual DP ports. This is useful for machine vision setups, dashboards, or environments requiring extended or mirrored screens.
