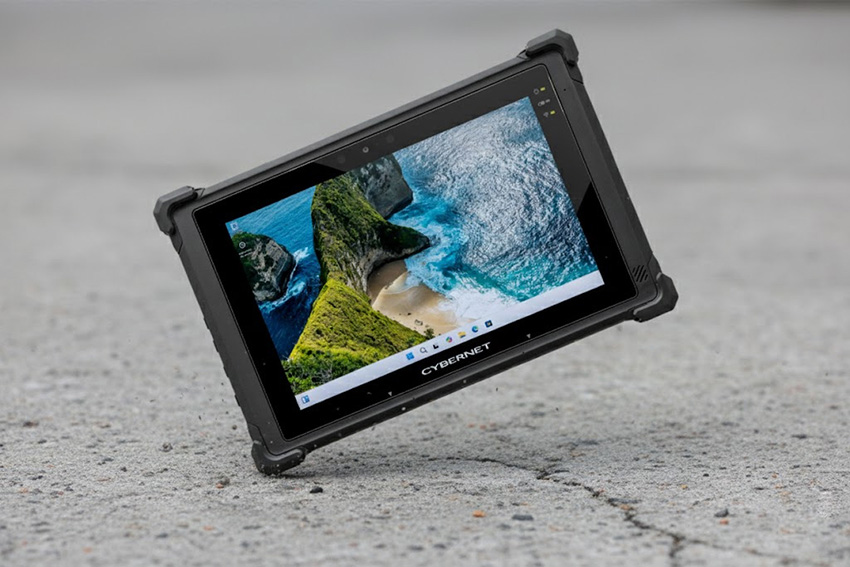

Outdoor Tablet Rugged X20

Cybernet Rugged X20 is an outdoor tablet engineered for environments where standard devices fail. Purpose-built for field operations, logistics, utilities, military support, construction sites, and oil and gas teams, this tablet delivers sunlight-readable clarity, water and impact resistance, and the processing power required to stay productive outdoors in any condition.

Key Features:

Sunlight-Readable Outdoor Display: Maintains full visibility in direct sunlight, utilizing an anti-reflective coating for outdoor visibility.
Rugged Outdoor Design: Built to withstand rain, dust, vibration, and accidental drops, with glove & wet-finger touch support for outdoor work.
Comprehensive Connectivity: Equipped with three USB ports, Wi-Fi 6, Bluetooth 5.3 and a LAN port for easy device integration and data transfer in the field.
Hot Swappable Battery: Long-lasting, hot-swappable/detachable battery for continuous use comes standard 64wh and extended 99wh option.
Top-Mounted 2D Scanner: Conveniently placed for fast, intuitive scanning with a dedicated physical scan button.

The Rugged X20 tablet is designed and manufactured by Cybernet, a true OEM with full customization options, a proven track record of less than 0.5 percent failure rate, and U.S.-based engineering support.

Outdoor Tablet with Sunlight-Readable Display

Sunlight-Readable Display and GPS/LTE for Outdoor Work

Cybernet's Rugged X20 is an outdoor tablet built to perform in bright, demanding environments. With a high-fidelity sunlight-readable display and optional LTE and GPS connectivity, the X20 tablet gives field teams the freedom to work anywhere their job takes them.

Outdoor-Optimized Display: High brightness and optical bonding ensure clear visibility in direct sunlight, allowing charts, schematics, and field data to remain readable without glare or washout.
Integrated GPS and 4G LTE Options: Built-in wireless connectivity and GPS tracking allow you to stay connected and locate assets in remote job sites, mobile operations, and outdoor workflows.

Rugged Outdoor Tablet Built for Harsh Environments

Cybernet's Rugged X20 is engineered for tough outdoor conditions where consumer tablets fail. Tested by certified third parties, the X20 tablet PC is built to withstand drops, impacts, vibration, dust, and exposure to the elements, making it ideal for field service, utilities, construction, oil and gas, and remote outdoor operations.

Extreme Protection: Constructed to meet MIL STD 810H standards and proven to withstand drops up to 5 feet onto concrete, along with repeated one meter tumble testing.
Impact Resistant Glass: The chemically strengthened touchscreen passed the one-meter steel ball impact test, ensuring durability during demanding outdoor work.
Dust and Liquid Protection: An IP65 rated front bezel and IP54 rated chassis prevent dust and water from entering the device, safeguarding internal components during outdoor use.
Wide Temperature Tolerance: The Rugged X20 tablet performs reliably from -10°C to 50°C, giving teams confidence in hot, cold, and rapidly changing environments.

Outdoor Tablet with battery Charging Station

Versatile Accessory Ecosystem for Outdoor Work

Cybernet's Rugged X20 tablet PC is supported by a complete ecosystem of accessories designed for both indoor and outdoor operations. Whether your team is working on a job site, navigating a warehouse, or performing field tasks in remote environments, these accessories help you stay equipped, powered, and efficient throughout the workday.

RAM Mount Compatible Vehicle Dock: Securely mount your Rugged X20 tablet in trucks, forklifts, service vehicles, or heavy equipment for reliable mobile operations.
Desktop Dock: Convert the Rugged X20 into a full desktop workstation with additional I/O ports and charging capability for office or command center use.
Standalone Multi-Battery Charger: Keep multiple batteries ready for extended outdoor shifts where access to power may be limited.
Kickstand with Rugged Handle: A durable handle and integrated kickstand make the tablet easy to carry and position during field inspections, maintenance tasks, or outdoor data entry.
Carrying Options: Shoulder straps, hand straps, and brief case style straps offer flexibility and comfort for users who need to transport the Rugged X20 tablet PC throughout long shifts or challenging terrain.

Customize Your Outdoor Tablet

Equip the Rugged X20 with the accessories and integrations your outdoor workflows require. These customization options allow teams in field service, logistics, oil and gas, utilities, and construction to adapt the tablet for different environments and tasks.

Vehicle Docking Station

Use the dedicated vehicle dock to secure the Rugged X20 tablet PC inside trucks, forklifts, utility vehicles, and service fleets for dependable mobile operations.

Built-In Scanners

Integrated barcode and RFID scanners make it easy to manage inventory, track assets, or capture data directly from the tablet while working outdoors.

Kickstand and Handle

The optional carrying handle adds convenience during field inspections and outdoor tasks, while the integrated kickstand provides hands free use at a desk, workstation, or job site.

Specifications

Display	10.1" IPS, 850 nits, 16:10, 1920 x 1200 Sunlight Readable Display
CPU Support	13th Generation Intel Core i5 Processor with vPro Technology
Input	10-point PCAP Touch Supports water mode, and glove touch 5 buttons (power, vol up, vol down, 2 x Programmable Keys) Supports MPP2.0
Memory	16GB LPDDR5
Operating System	Windows 11, Windows 10, Windows IoT, Linux
Touch Screen	10-point PCAP Touch
Networking	1GB Ethernet w/PXE Support GPS/LTE(Optional)
Wireless	WIFI 6E, Bluetooth® 5.3
Integrated Peripherals	2MP Front Camera (Optional 5MP Front Camera with Windows Hello Support) 8MP Rear Camera 1D/2D Honeywell Barcode Reader Biometric Fingerprint Reader (Optional)
Storage	M.2 SSD Up to 2TB
Security	TPM 2.0 (Trusted Platform Module) Windows® Hello (Optional) Kensington Cable Lock
Sensor	G Sensor Support, Display Auto-Rotate Support
Power Input	1 x 19VDC @ 3.78A
Power Supply	65W External USB Type C Power Supply with AC Cord
Hot Swap Battery	Up to 8-hour Runtime
Water Resistance	IP65 Sealed Front, IP54 Rear
Dimensions	11.50" x 7.60" x 0.70" (L,W,D)
Weight	2.53 lbs (1.149kg)
Wall Mount	Supports 75mm & 100mm VESA Mounting Holes using Optional VESA Mount
Environment	Operating Temperature: -10°C~50°C Storage Temperature: -20°C~60°C
Relative Humidity	10%~90% (non-condensing)
Certifications	MIL-STD-810H, Tumble Test, IP65
I/O Ports	1x Docking connector 1x RJ45 Gigabit Ethernet Port 1x USB 2.0 Type C/Power Input 1x USB 3.1 Type C w/DP Alternate Mode 1x USB 3.1 Type A 1x SIM Card Reader (Nano) 1x SDXC Card Reader (Micro) 1x Reset button (hole)
Audio	2x Digital Microphone 1x 2W Speaker 1x 3.5mm Audio Jack
Warranty	3 Years* Standard with Optional Plans up to 5 Years
	Notes: *Only for US-based customers.

Looking to download this information? Download PDF Version

Outdoor Tablets Made for Direct Sunlight Applications

How Cybernet Makes the Difference

Technical Support

Our U.S.-based tech support team is ready to assist with any technical issues, and it's free for the lifetime of our products, unlike manufacturers who charge for telephone support after one year.

Warranty

Our devices include a 3-year warranty for manufacturing or assembly defects, with options for a 5-year extended warranty.

Customization

We offer a range of processors, operating systems, and features, allowing you to choose the perfect fit without unnecessary expenses.

Less Than 0.5% Failure Rate

Our rigorous documentation and stress testing ensures that our devices have a failure rate below 0.5%.

Trusted by

We looked at a number of different manufacturers before choosing Cybernet. Ultimately, they were able to customize their units to our specific needs, and their sales and support staff worked with our engineers throughout the process to get the solution right.

- Tess Royds, Manufacturing Engineer Raytheon

Frequently Asked Questions

Is the outdoor display readable in direct sunlight?

Yes. The display is engineered for outdoor visibility with high brightness output and optical bonding that minimizes glare and reflections. This ensures charts, forms, maps, and inspection data remain clear in direct sunlight.

What is the battery life of the tablet?

With mixed usage, the Rugged X20 delivers up to six hours of runtime. Extended battery options and hot swap capability allow crews in the field to operate the tablet throughout the entire shift without interruption.

How does hot swapping work if there is only one removable battery?

The Rugged X20 includes a small internal bridge battery that powers the device for roughly one minute. This gives the user enough time to remove and replace the main battery without shutting the tablet down. When the main battery is unlocked, the screen briefly turns off to conserve power. After inserting the replacement battery, the display powers back on and work can continue immediately.

Does the LAN port support PXE boot directly, or is a docking station required?

The tablet's built-in Gigabit LAN port fully supports PXE boot. This setting can be enabled in the BIOS menu and does not require the use of a docking station.

Can the tablet dock while hand straps or other accessories are attached?

Yes, the Rugged X20 is designed to dock securely even when optional hand straps and other accessories are still attached.

Do you offer accidental damage protection for outdoor use?

Yes, Cybernet offers an Accidental Damage Protection program that covers damage caused by drops, spills, and other unexpected accidents. Terms and conditions apply, and we recommend reviewing the complete program details for coverage specifics.

Is the Rugged X20 waterproof or water resistant?

The Rugged X20 features an IP65 rated front bezel and an IP54 rated chassis. These ratings help protect the tablet against dust and water exposure during outdoor operations such as rain, wash downs, and moisture rich environments. It is not designed for full submersion.

Can the Rugged X20 tablet be used in extreme temperatures?

Yes. The Rugged X20 operates reliably from -10°C to 50°C. This temperature range supports field work in hot environments, cold climates, and rapidly changing outdoor conditions.

Does the tablet support glove or stylus input for outdoor tasks?

Yes. The touchscreen supports operation with gloves, styluses, and bare hands, making it suitable for workers wearing protective equipment or operating in cold weather.

Can the tablet be mounted in vehicles or heavy equipment?

Yes. The Rugged X20 is compatible with RAM mount vehicle docks and dedicated mounting systems for trucks, forklifts, construction equipment, and service vehicles. These mounts are built for vibration resistance in mobile outdoor environments.

Does the Rugged X20 support GPS or 4G LTE for field connectivity?

Yes. Optional GPS and 4G LTE modules provide location tracking and wireless connectivity for remote job sites, field inspections, and teams operating in areas without reliable Wi-Fi access.

Is the tablet suitable for construction, utilities, oil and gas, and other outdoor industries?

Yes. The Rugged X20 is engineered specifically for demanding field and industrial environments. Its MIL STD 810H testing, wide temperature range, drop protection, sunlight readable display, and long battery options make it ideal for field service, construction, logistics, oil and gas operations, utilities, transportation, and mobile inspections.
